Download product sheet

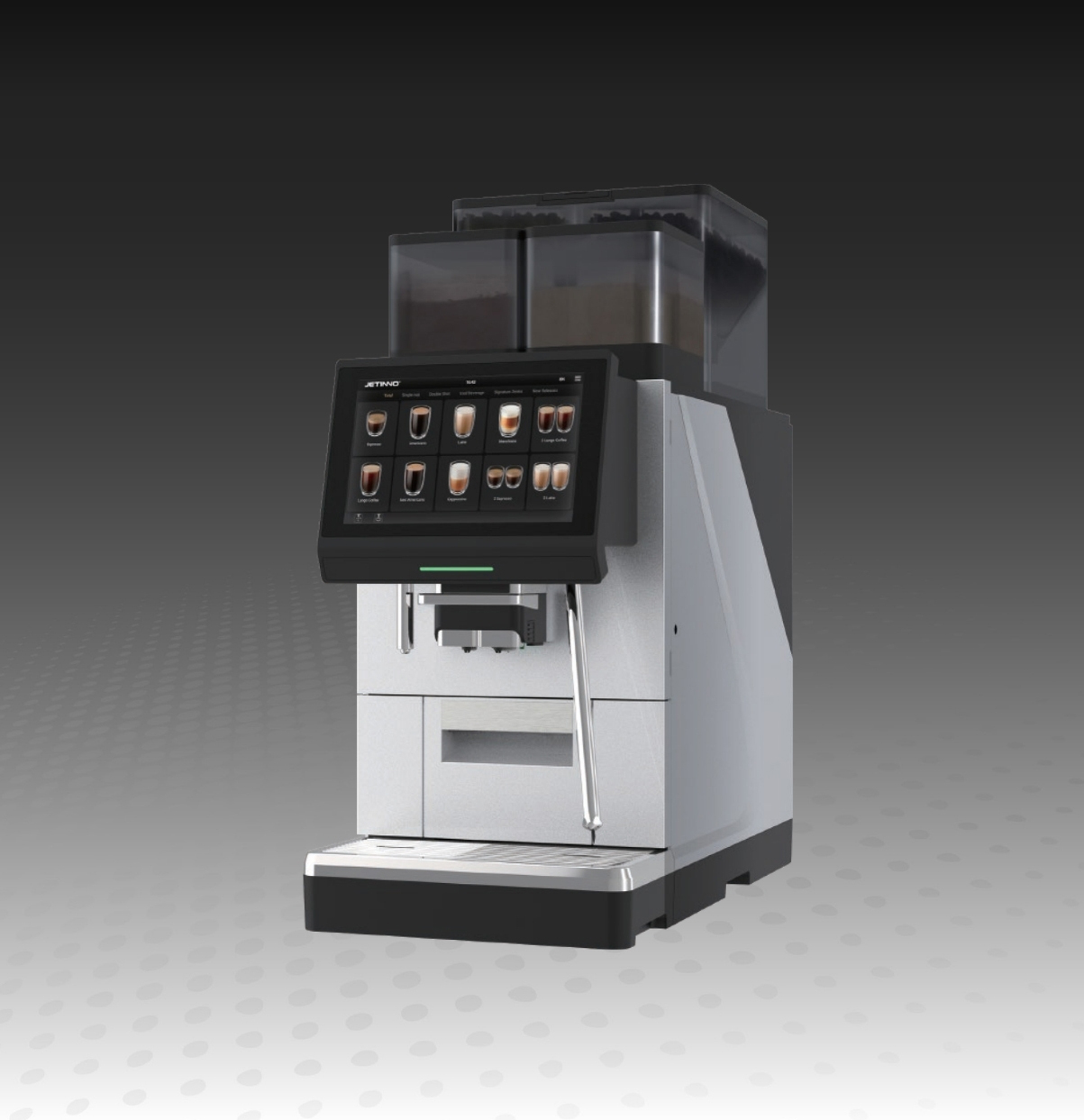

FULLY AUTOMATIC COFFEE MACHINE-100 CUPS

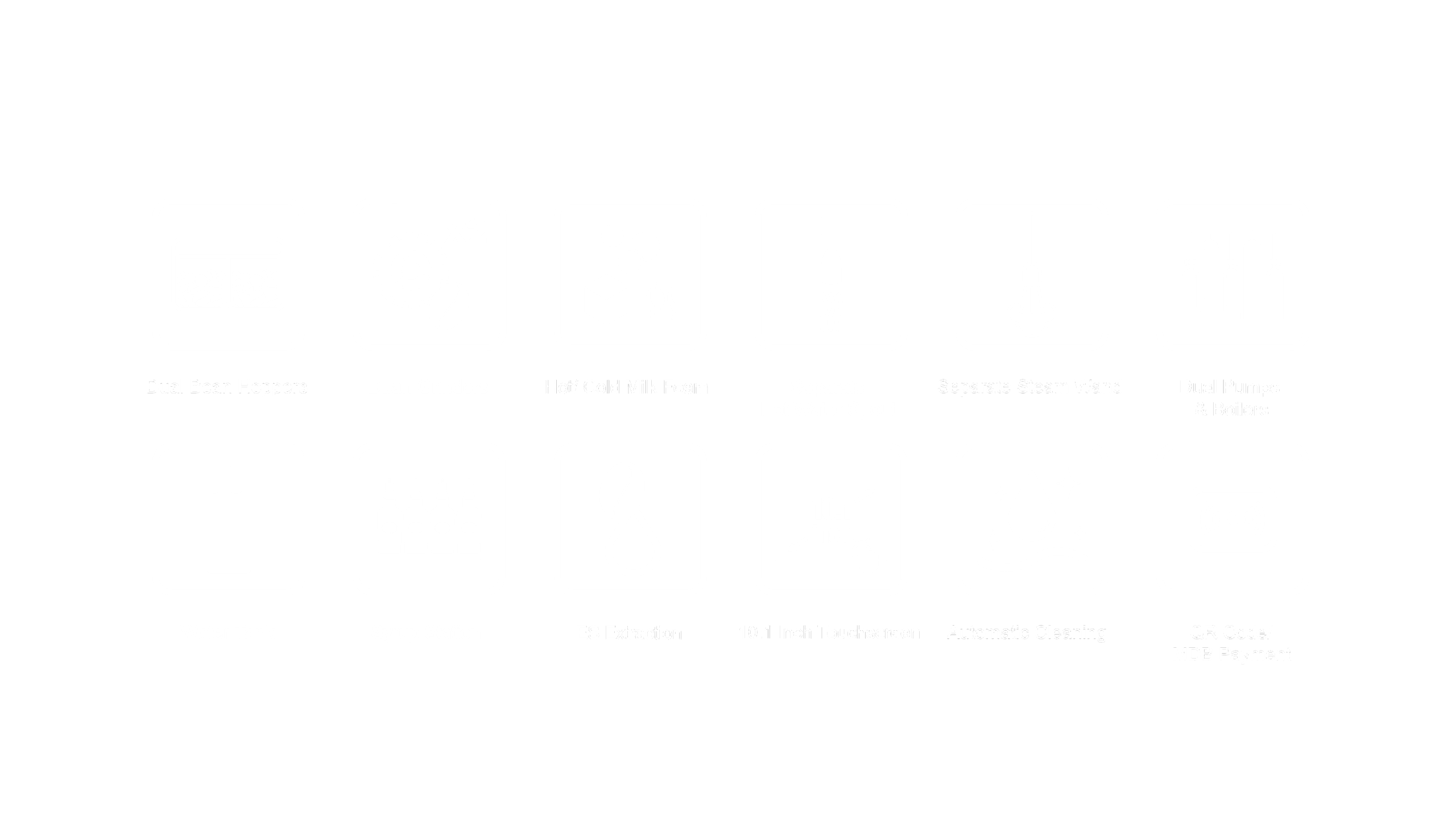

- 10.1″ Touch Display x1
- 1X 20g ES Brewer
- 2X PGH64 grinders
- 2X 1.2KG Bean Hoppers
- 2X 2L Instant Canister
- 2x water pumps
- 2x boilers
- 1x steam wand+1x water spout
- Venturi milk system
- Automatic Rinsing and Cleaning Function
- Compatible with MDB Protocol Payment Devices
- Wifi Connection
- Telernetry
- auto lifting outlet
Crafted to Perfection
Professional Dual Grinding
Equipped with 2 independent bean hoppers and grinders, supporting two different coffee beans for simultaneous grinding.
Cold/Hot Fresh Milk & Foam
Independent milk pump and foam generator deliver versatile hot and cold milk textures, expanding menu possibilities for premium beverages.
Hands-free Auto Cleaning
Completely automated cycles cover rinsing, milk system deep clean and sanitation-no manual steps required.
Details Make Professional

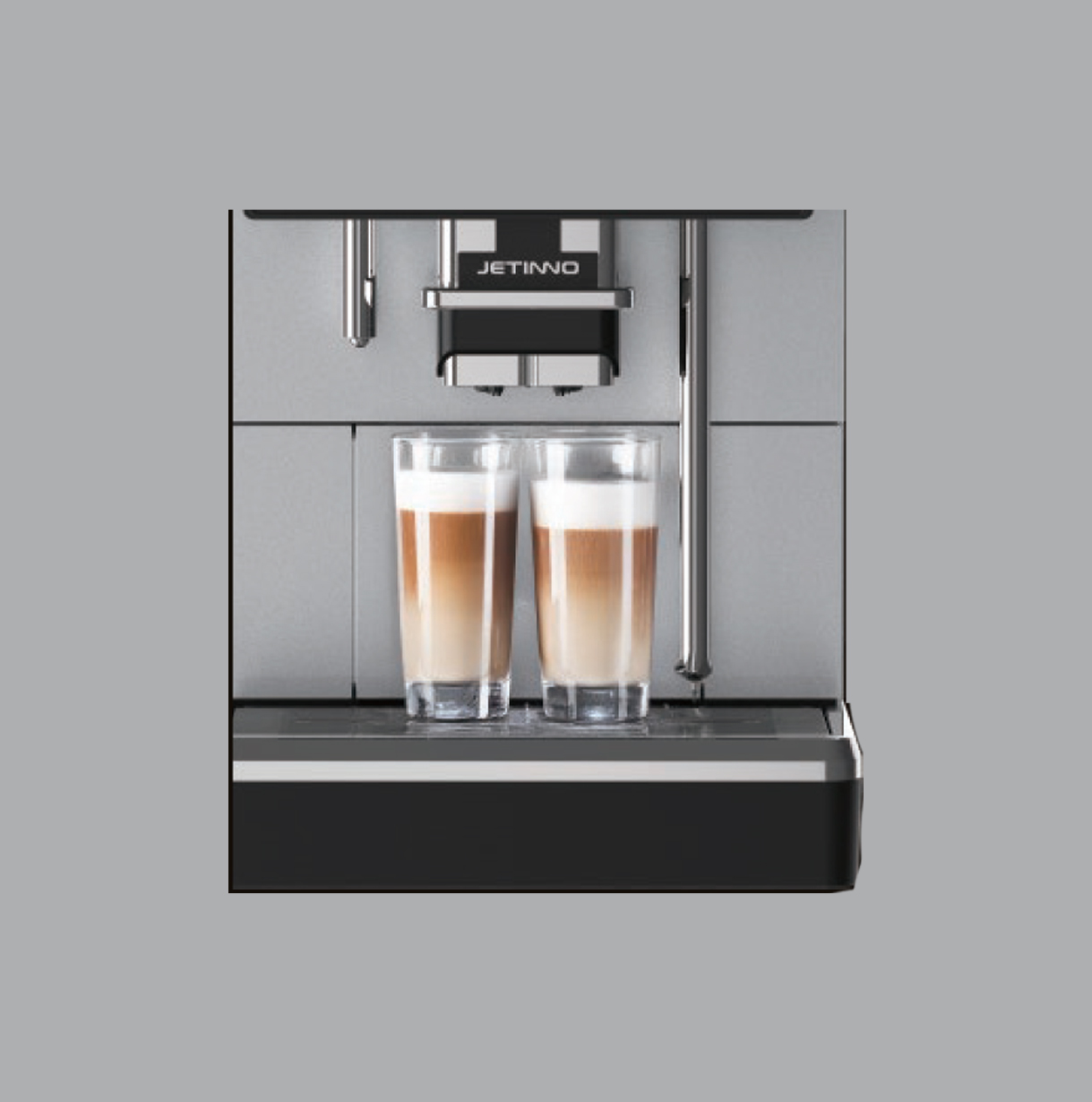

One Click Two Cups
Serve with 2 cups of coffee at the same time.

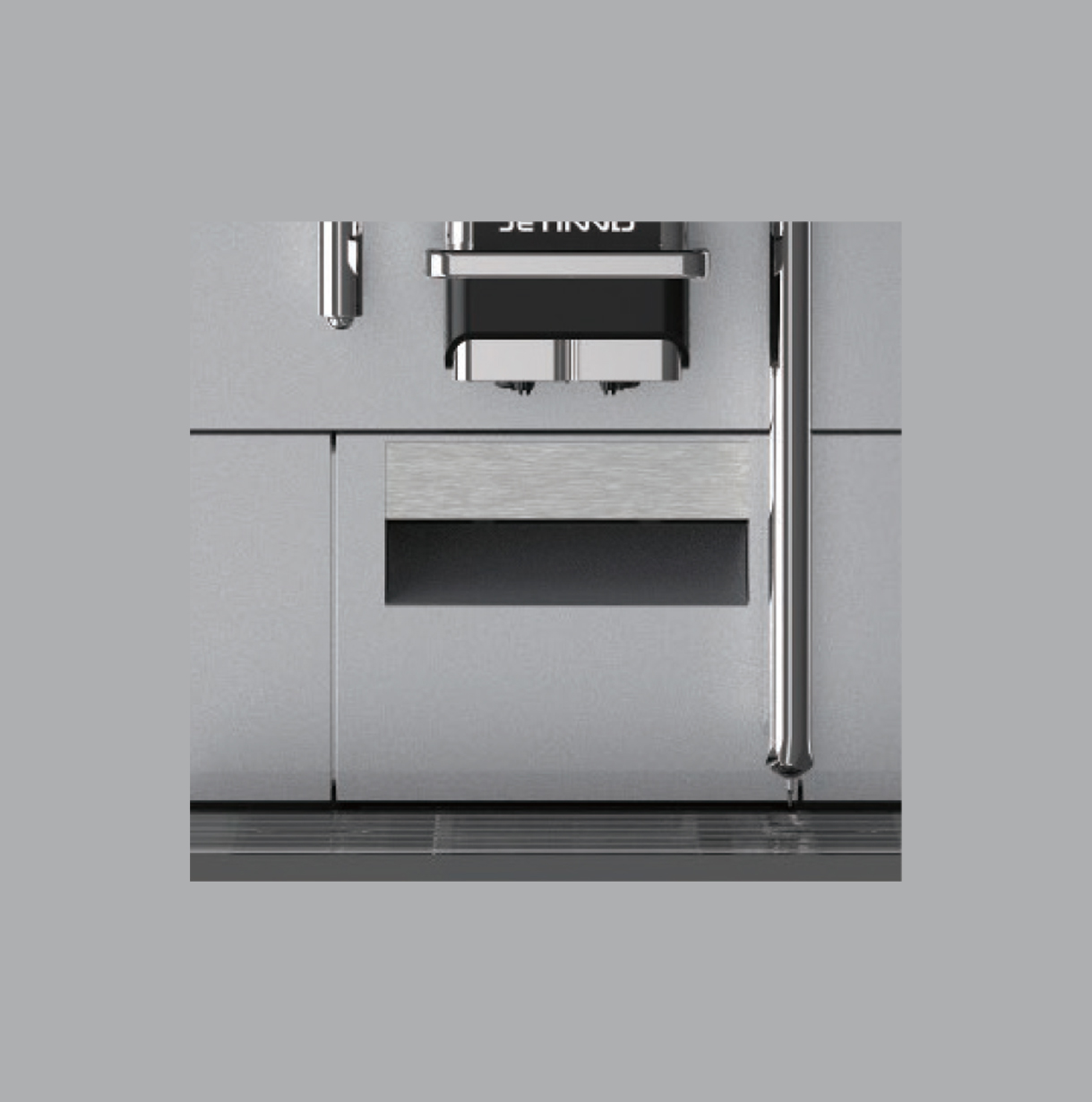

Adjustable Spout
The height range is 80-180mm, adjustable to fit with different cups.

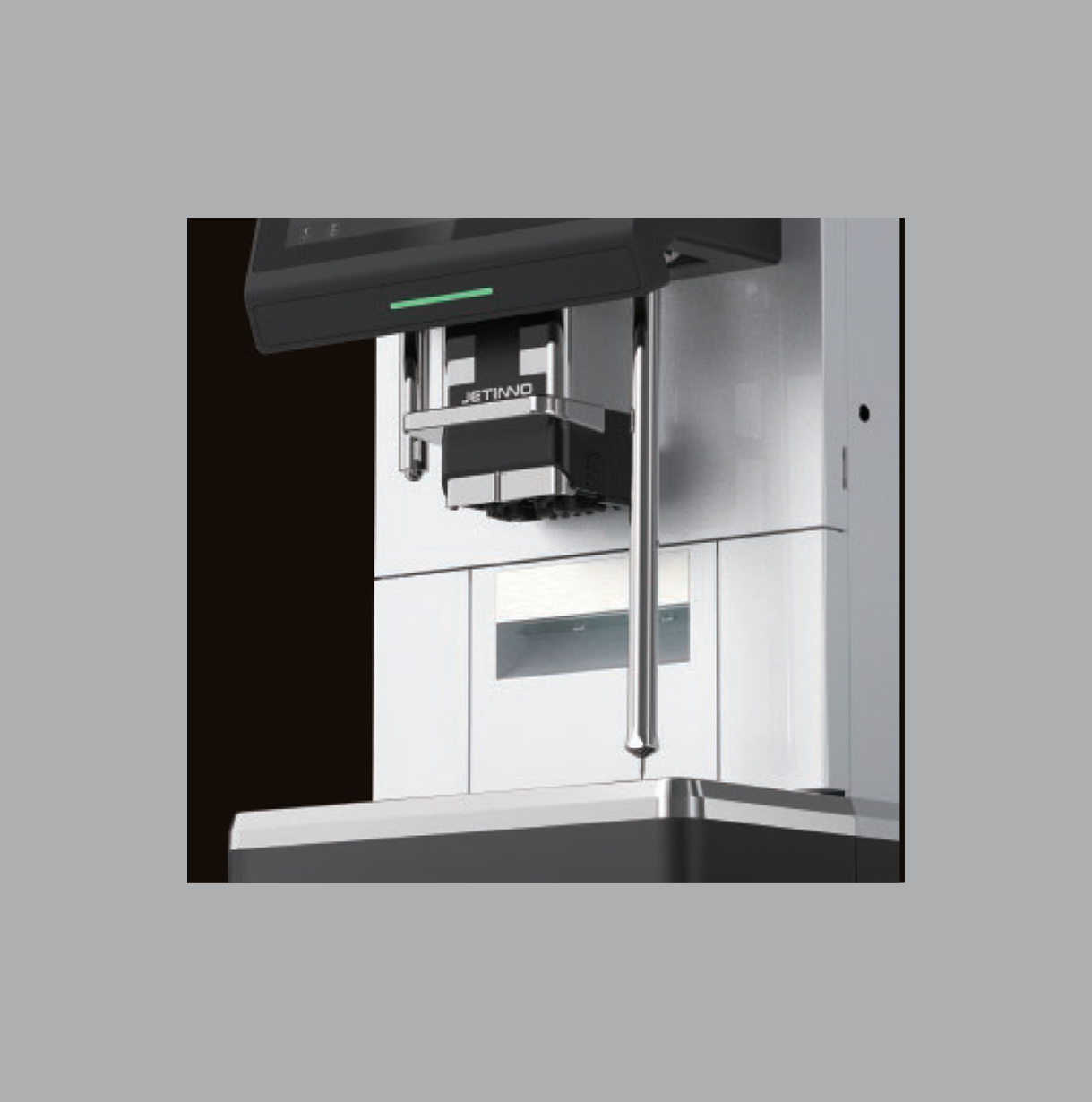

Hot Water Spout & Steam Wand
Care more for cup warming and manual coffee making.
Lockable Hoppers & Canisters
See the bean and secure the ingredients.

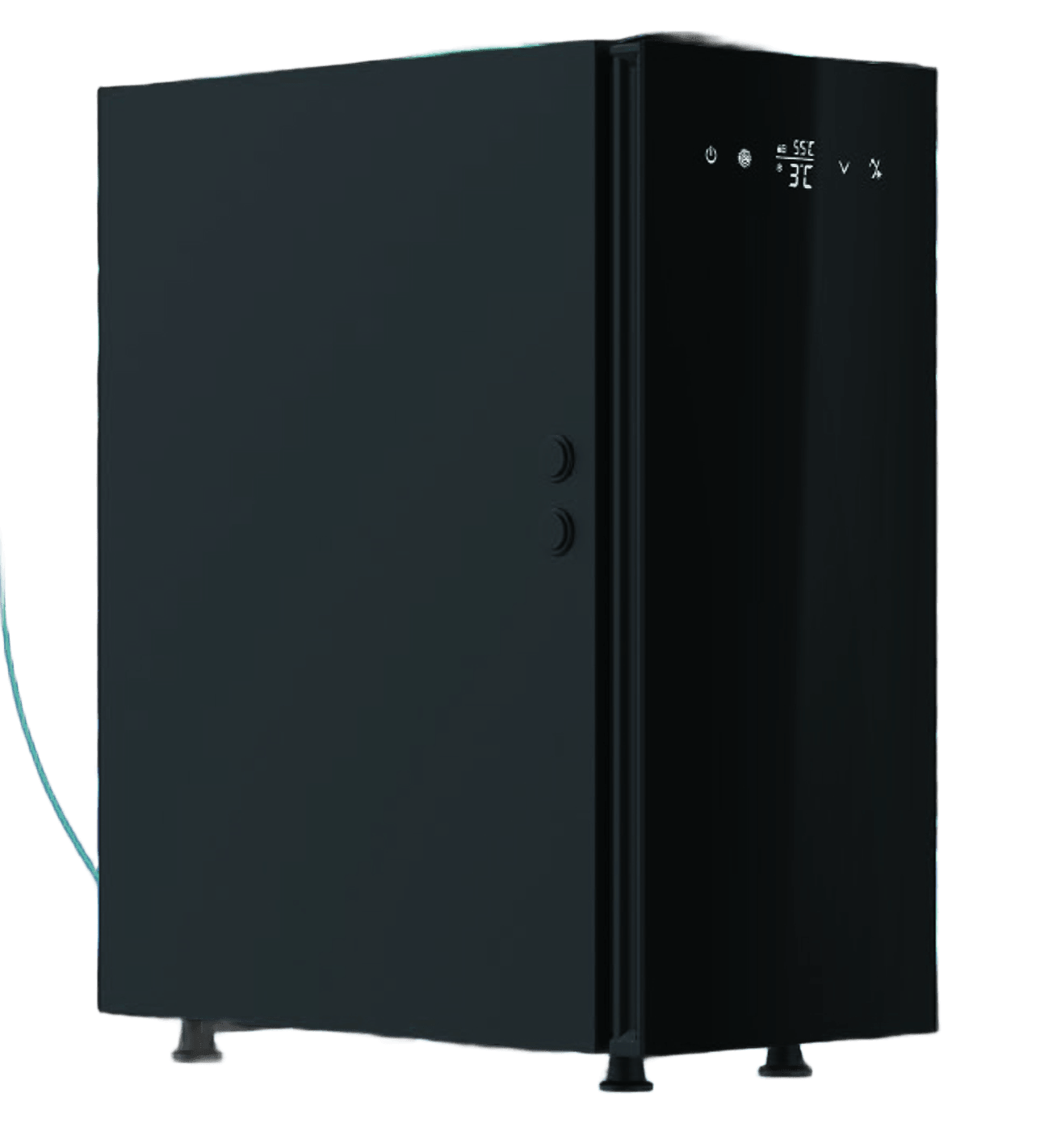

Fresh Milk System
With independent milk pump and foam generator, JL38 A/B models can easily produce delicate and smooth hot/cold fresh milk and milk foam.

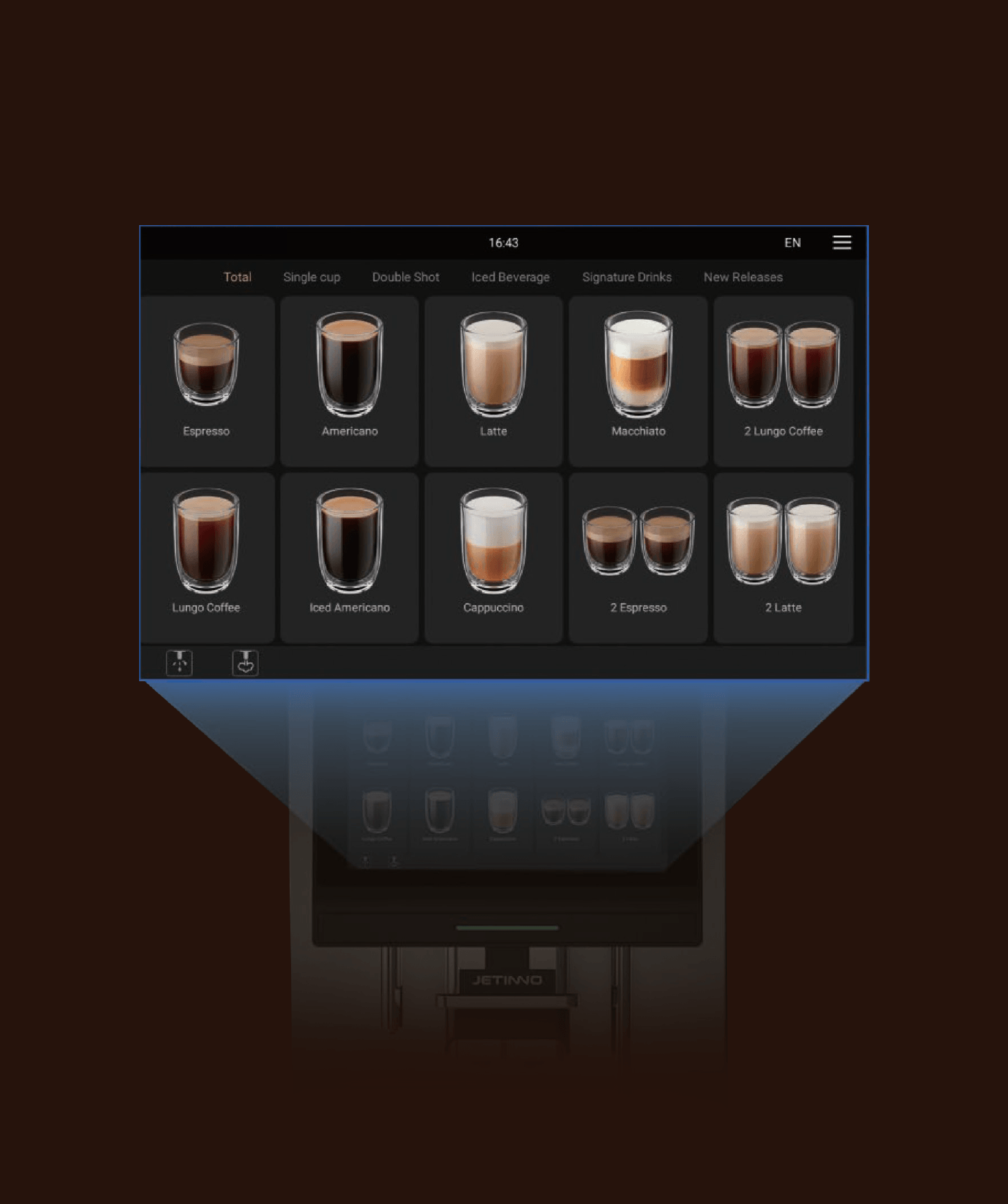

A Variety of Coffee and Drinks
Dual grinding system on select models, together with instant powders and optional syrups, JL38 offers more beverage choices. Added with fresh milk system, it is able to make 30+ drinks.
| MODEL | FLUX |
| Dimension | 312(W)*695(H)*608(D)mm |
| Net Weight | 38kg |
| Power Supply | 220-240V, 50/60Hz, 3100W |
| Interface | 10.1″ Touchscreen |
| Bean Hopper | 1200g * 2 , lockable |
| Coffee Powder Bypath | Yes |
| Instant Canister | 2L * 2 lockable |

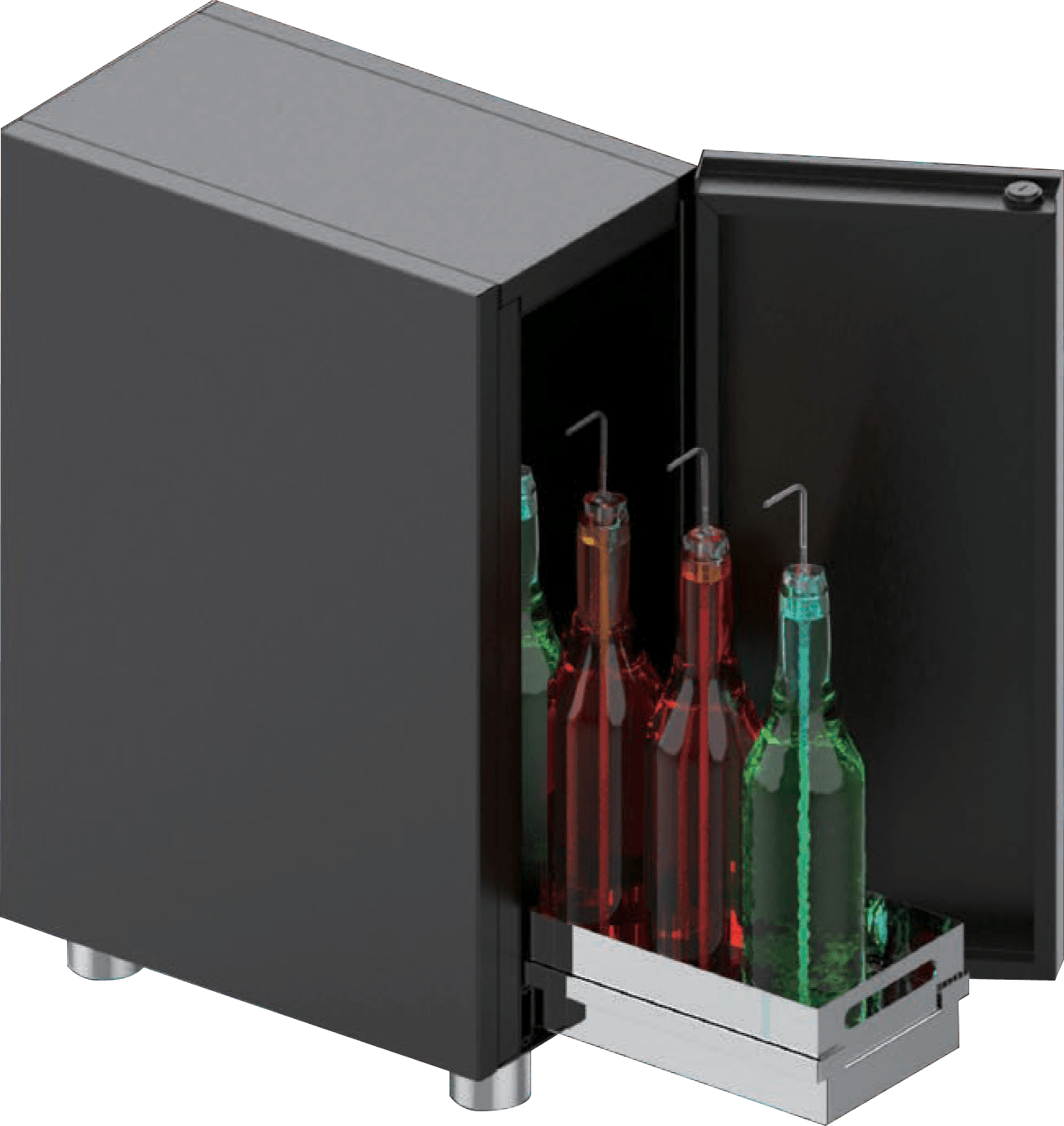

| Syrup Station | Opt. 4 bottles/pouches |
| Grinder | PGH64 x 2 |
| ES Brewer | P22/P20/P14 |
| Milk System | Hot/cold fresh milk & foam |
| Hot Water Pump | 2 |
| Boiler | 2 |
| Beverage Spout Height | 80-180mm |
| Hot Water Spout | Yes |
| Steam Wand | Yes |
| Waste Basket | 70 cakes, opt. direct slagging off |
| Drip Tray | 1.2L, opt. external drainage |
| Water Supply | Barreled water/ tap water, opt. 8L built-in tank |
| Internet Connection | Opt. Wi-Fi/4G |
| Payment Method | Opt. QR code, MDB device |
| IOT | Opt. SaaS Management |
| Daily Output | 200 Cups/Daily |

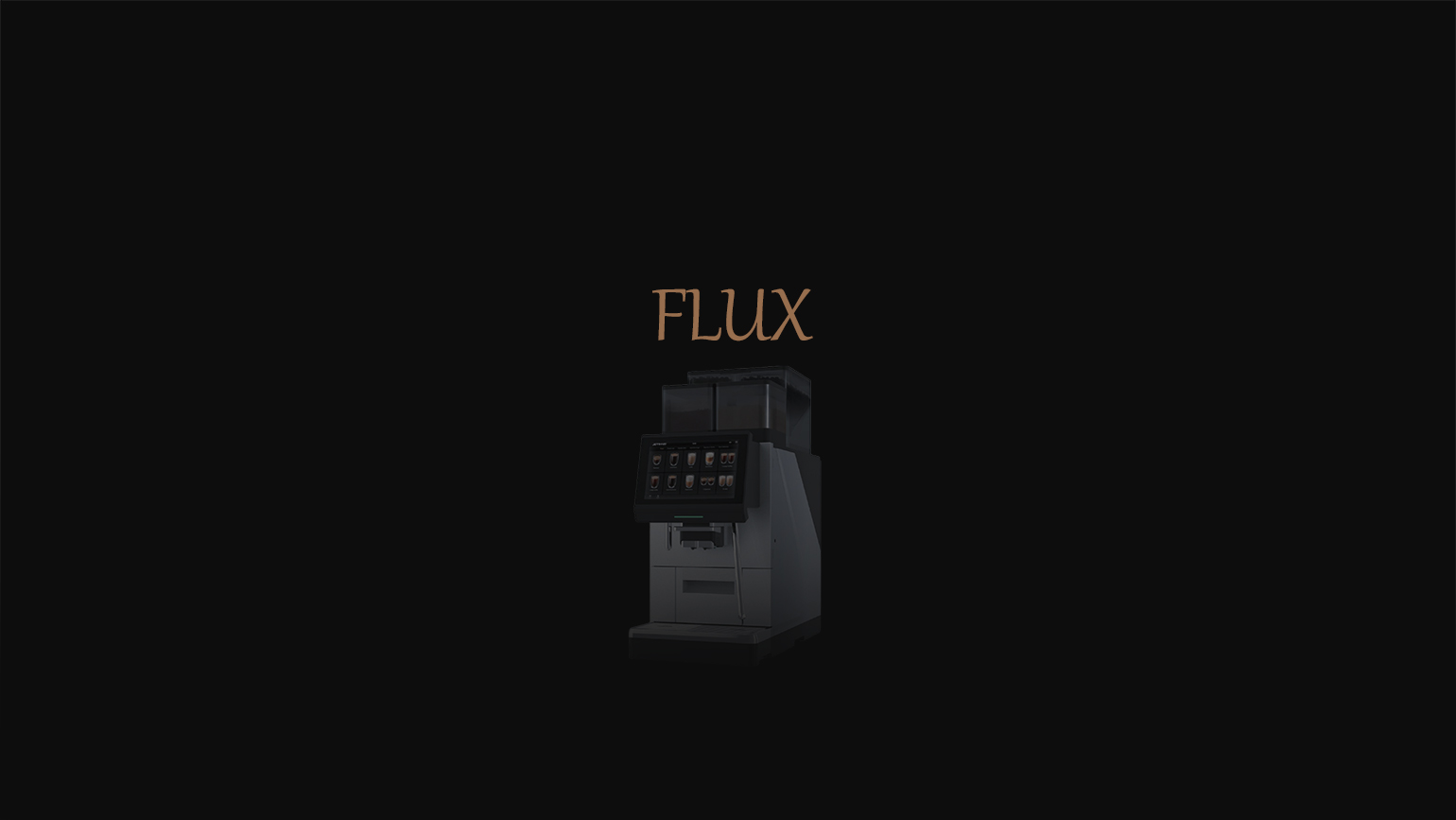

FLUX Espresso machine

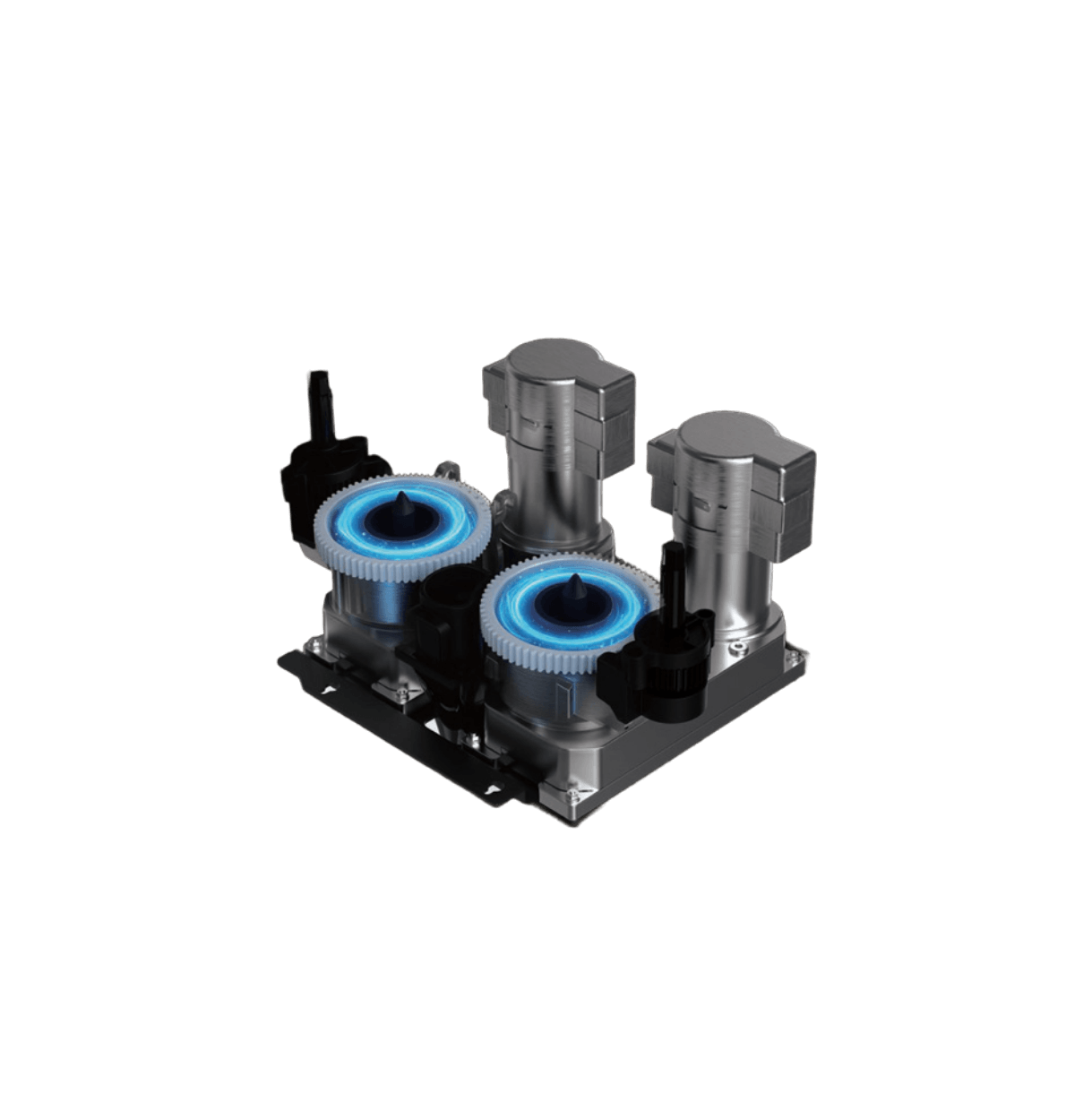

Jetinno SGH64 Grinding System
- 64mm special steel flat grinding burrs.
- Dissipate heat quickly, preventing coffee grounds from being reheated.
- 11-level adjustable grinding coarseness.
- 500kg coffee bean burr lifespan.
Jetinno High-Pressure Espresso Brewing System
- Pre-infusion extraction technology.
- Different locations for coffee bean loading and brewing.
- Optional 14g/20g brewing chamber capacity.
- Easy one-step disassembly for brewing.

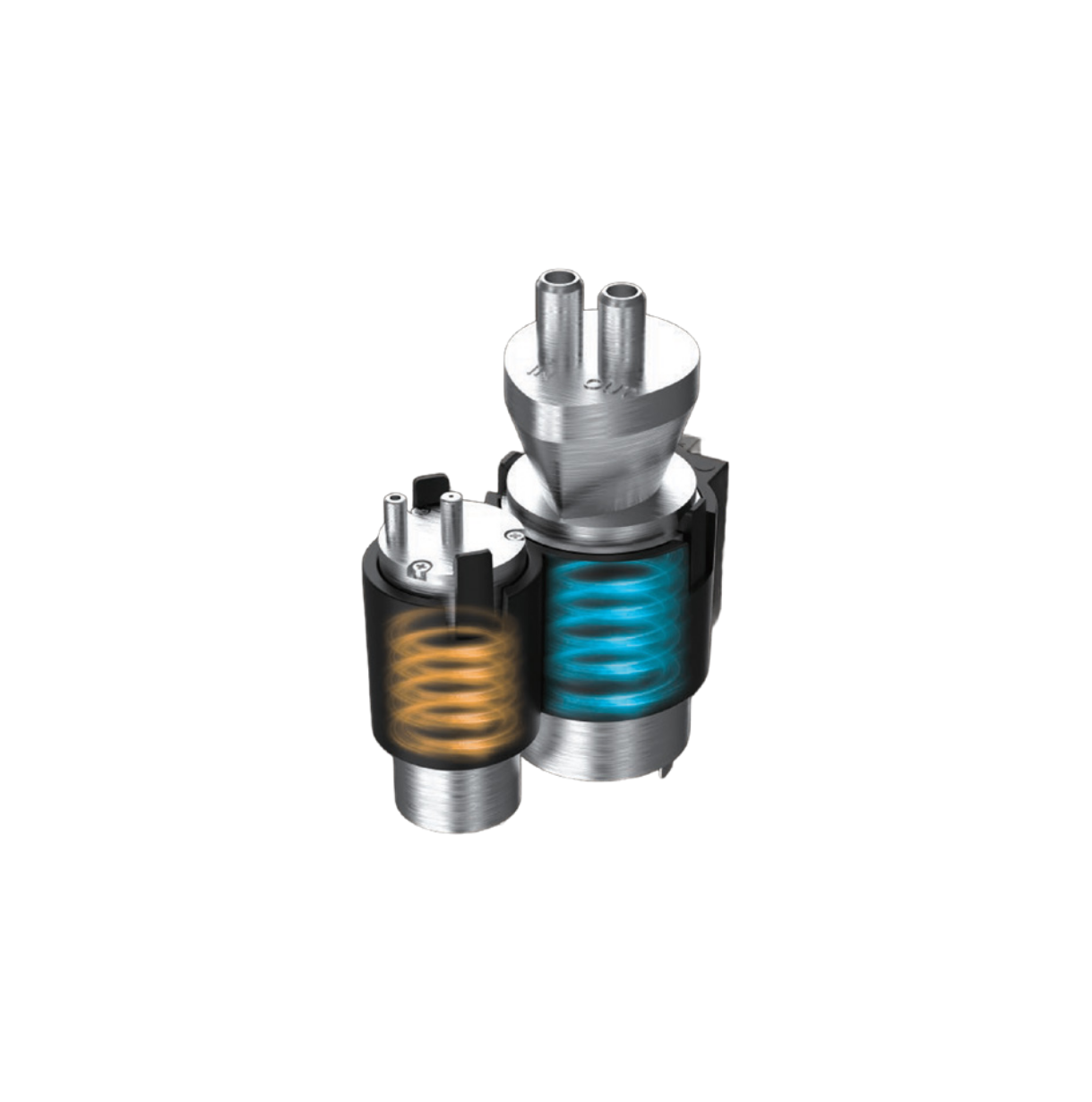

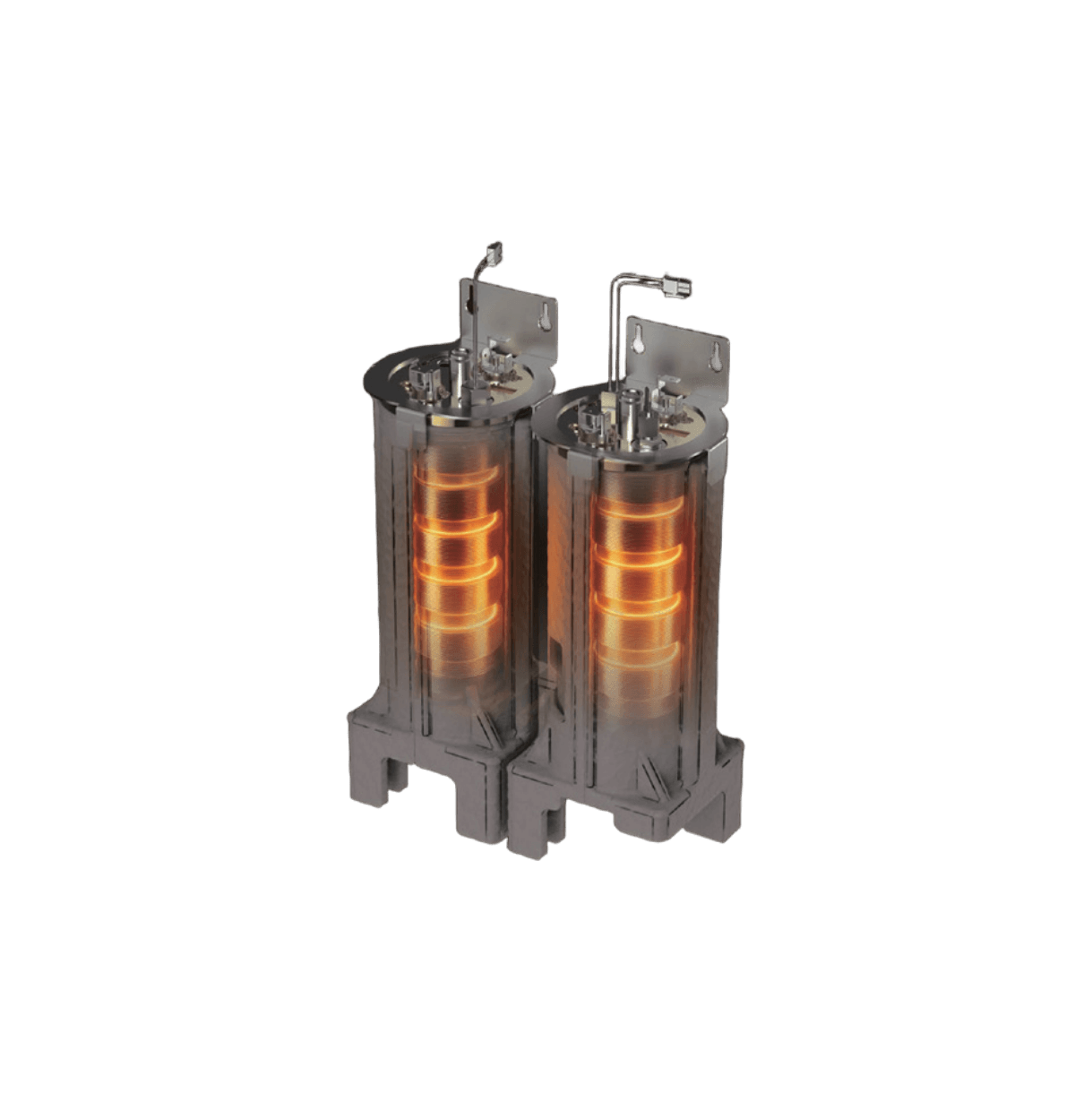

Hydraulic System
- Dual instant boilers provide 92°C hot water.
- Italian ARS high-pressure electromagnetic pump, provides strong and stable extraction pressure.
- Solenoid valves with a long lifespan.
- Independent modular design.

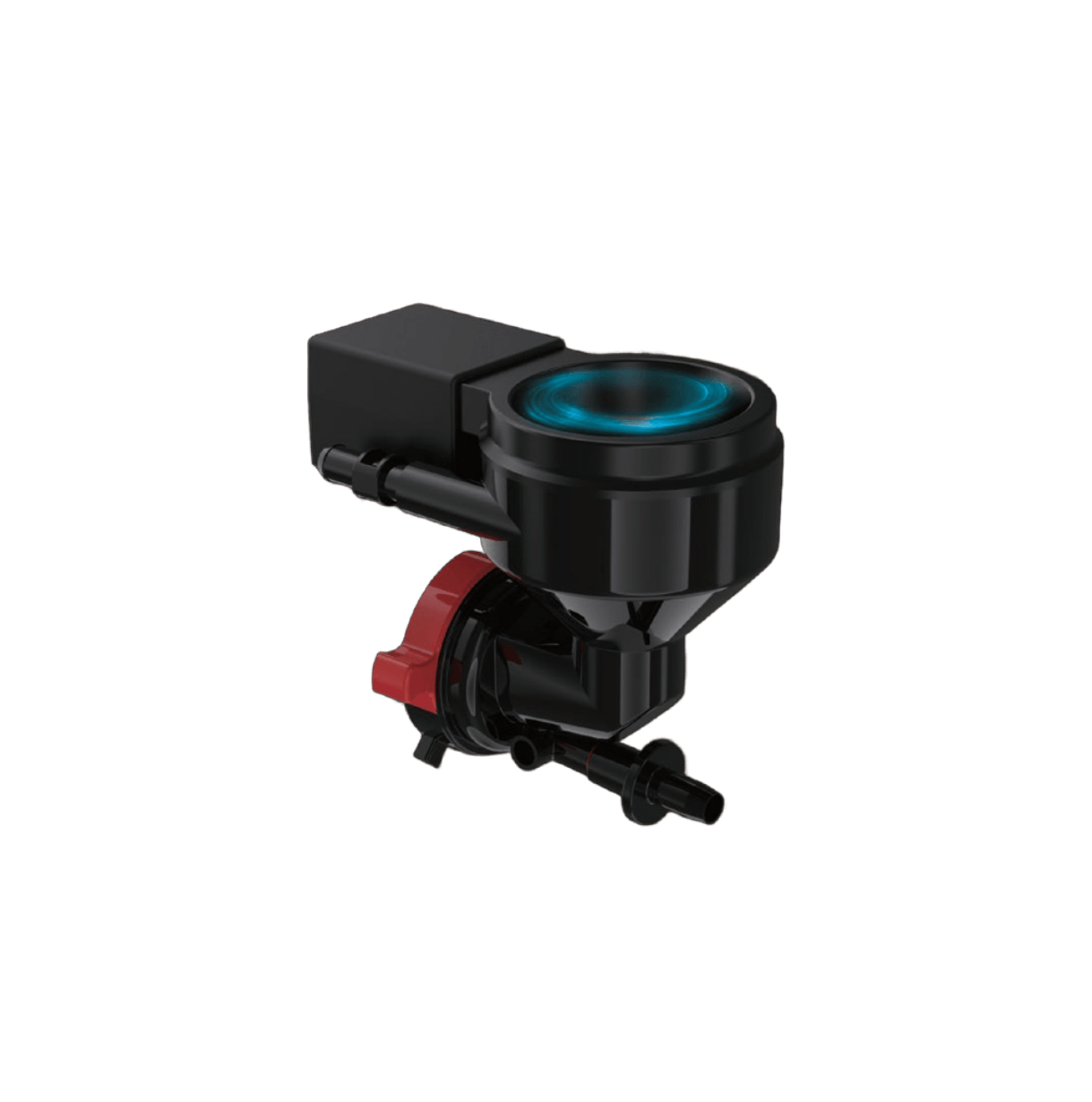

Hot Milk Frothing System
- Produces hot milk/foamed milk with a tem perature of 60°C or above.
- Independently adjusts the froth volume in the beverage.
- Timed automatic cleaning of the milk path.
- Snap-on design allows for quick disassembly.
Hot Milk Frothing System
- Produces hot milk/foamed milk with a temperature of 60°C or above.
- Independently adjusts the froth volume in the beverage.
- Timed automatic cleaning of the milk path.
- Snap-on design allows for quick disassembly.
Cleaning products
coffee machine cleaner
Use: used for coffee machine brewer cleaning
Details: 2g/pill, 100 pills/can
milk system cleaner for coffee machine
Usage: use 1 pill with 500m water
Details: 4g/pill, 120pills/bottle
Tower
Use: used for coffee machine cleaning and maintenance
Details: general use
Coffee Machine Boiler Cleaner
Use: used for coffee machine boiler cleaning
Ratio: 200g powder with 3.9L water
Details: 1kg/bottle, 6 bottles/case
Cleaning Brush
Use: used for coffee machine cleaning
and maintenance
Details: general use
Ul customization
| Name | Position | Width | Height | Format |
|---|---|---|---|---|
| Brand LOGO | A | 65.5mm | 20mm | Al or cdr |
| UI LOGO | B | 208PX | 58PX | PNG |
| UI drink picture | C | 300PX | 300PX | PNG |
| Video ads | D | 1280PX | 800PX | PNG |
Deep customization
| Name | Item |
| Ports |
Open underlying control serial port protocol, support customer self-developed APP. Open network interface (TCP/IP), support customer self-developed server. Open RESTful interface, support customer online store and data system. |
| OS | APP application layer customizable development (Android). |
