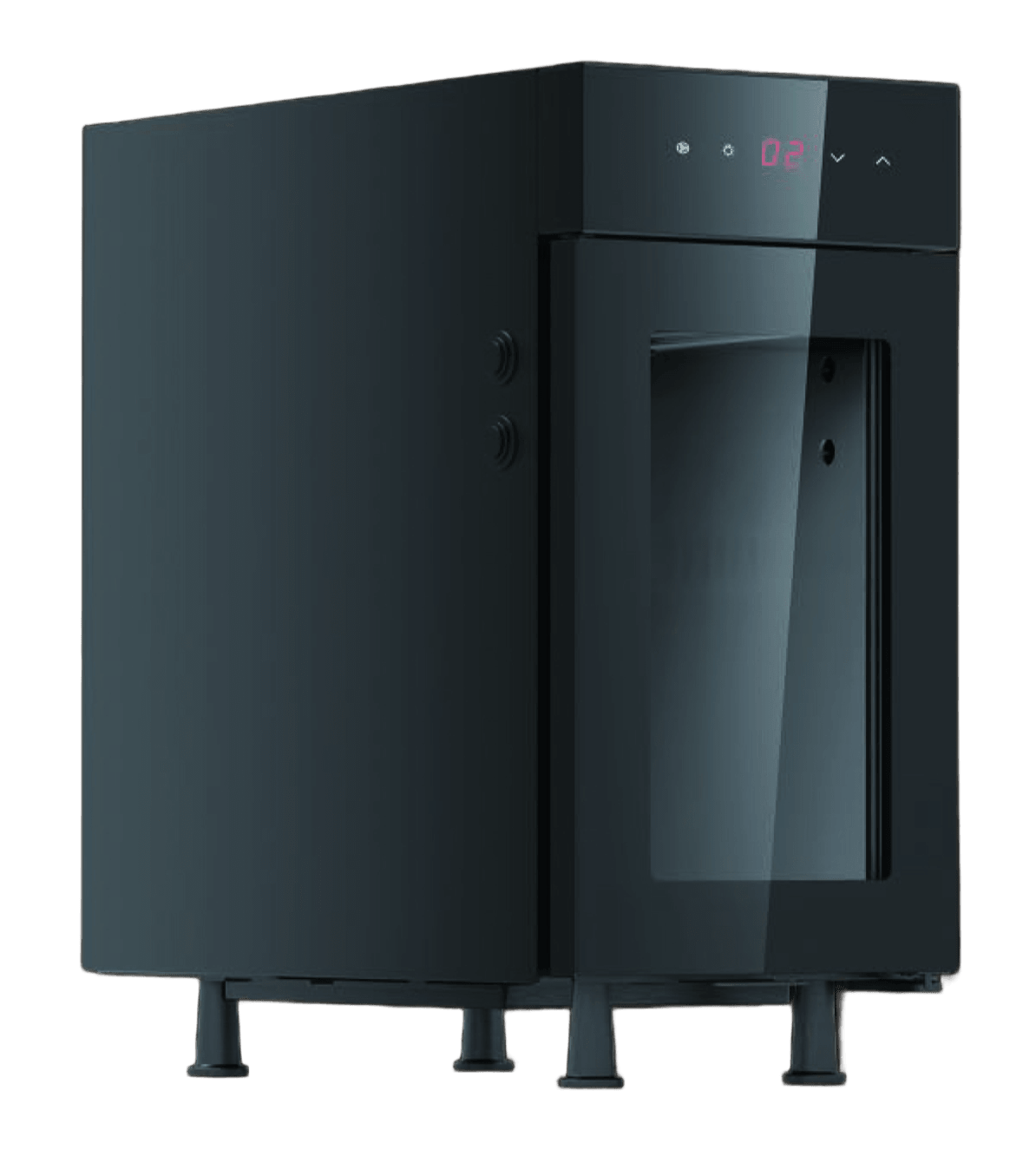

- Digital thermostat: ON/OFF function; Settable
- Preserves up to 4,2 L of milk
- Automatic Milk Frothing System
- Budget coffee vending machine on the market | Fresh milk option for the
- best taste
- Over 10 coffee and milk drink selections
- 10″ Touch Display x1
- Grinder SGH64 x1
- Bean Hopper 1500g x1 Cainstes x * 2(3L + 2L)
- Venturi milk foam unit x1
- Separate Hot Water Spout

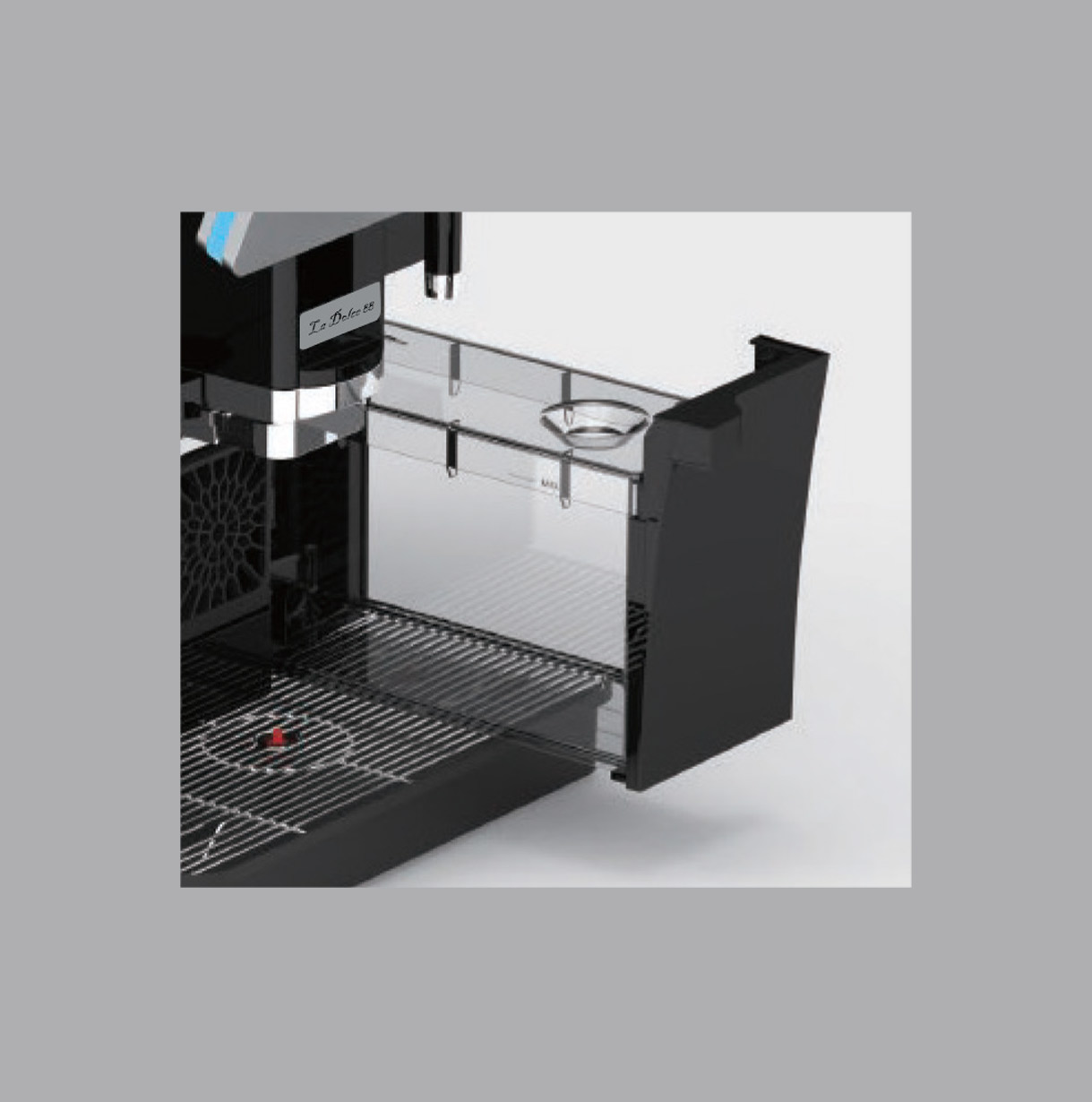

- Waster bucket 40 cakes x1
- Water tank 4L x1
- Steam wandx1
- Drip tray 1L x1
- Automatic Rinsing and Cleaning Function
- Compatible with MDB Protocol Payment Devices
- Telemetry
- support barrelled water
Crafted to Perfection
Crafted to Perfection
Built with Jetinno SGH64 grinder and 64mm special steel flat burrs for a uniform grind tuned for reliable flavor extraction in busy service.
Precision Metal Grinder

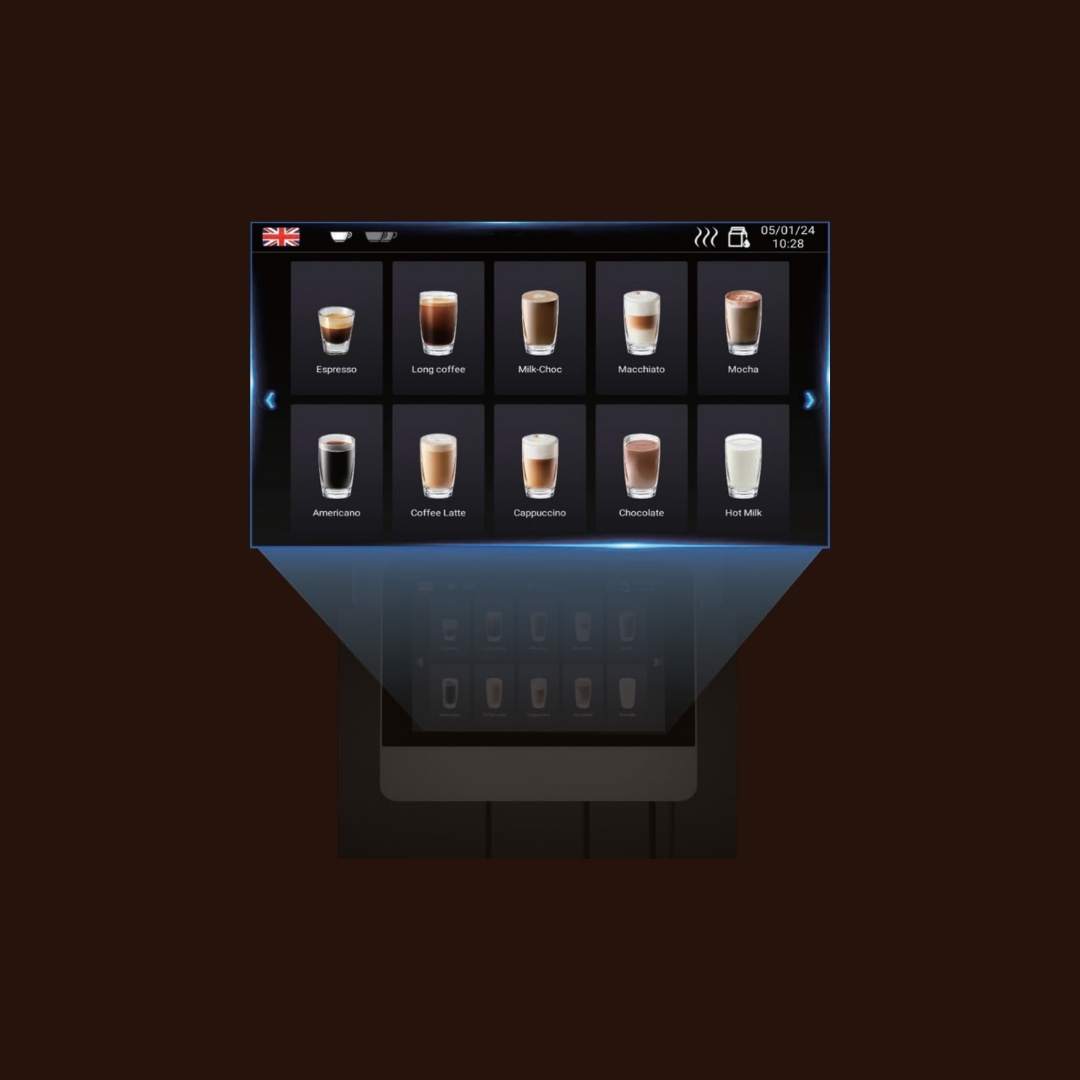

Slim, clean lines with a 10.1-inch wide touch panel keep menus clear and operations intuitive- good-looking on the counter, efficient in the rush.
Modern Look, Big Screen
Two independent heaters with twin ARS piston pumps enable true
brew + steam in parallel for faster service.
Dual Boilers & Dual Pumps
Excellence in Detail

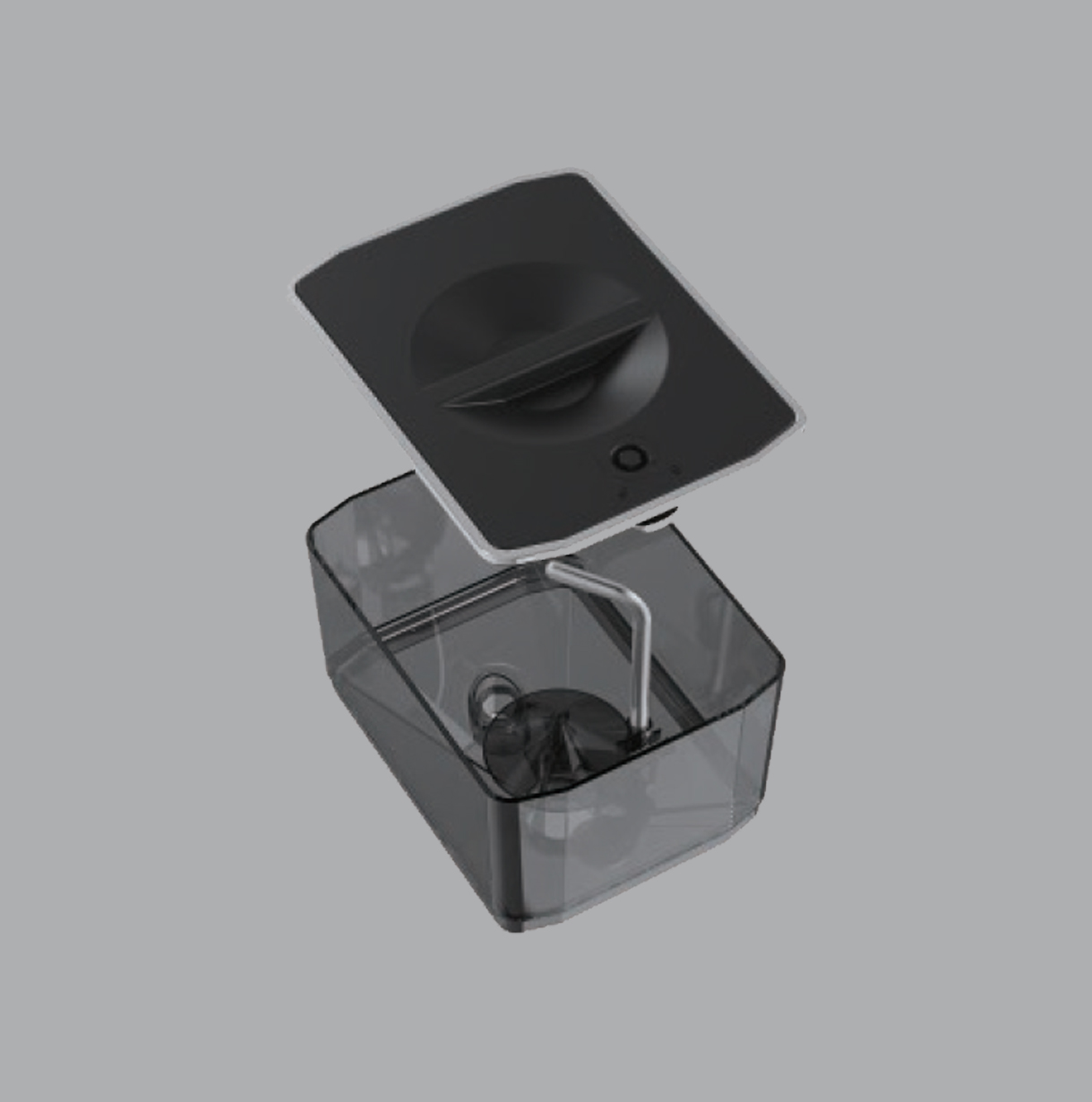

4L tank on board
still compatible with mains / barrel water
Independent hot water spout
for tea or dilution, clean and quick

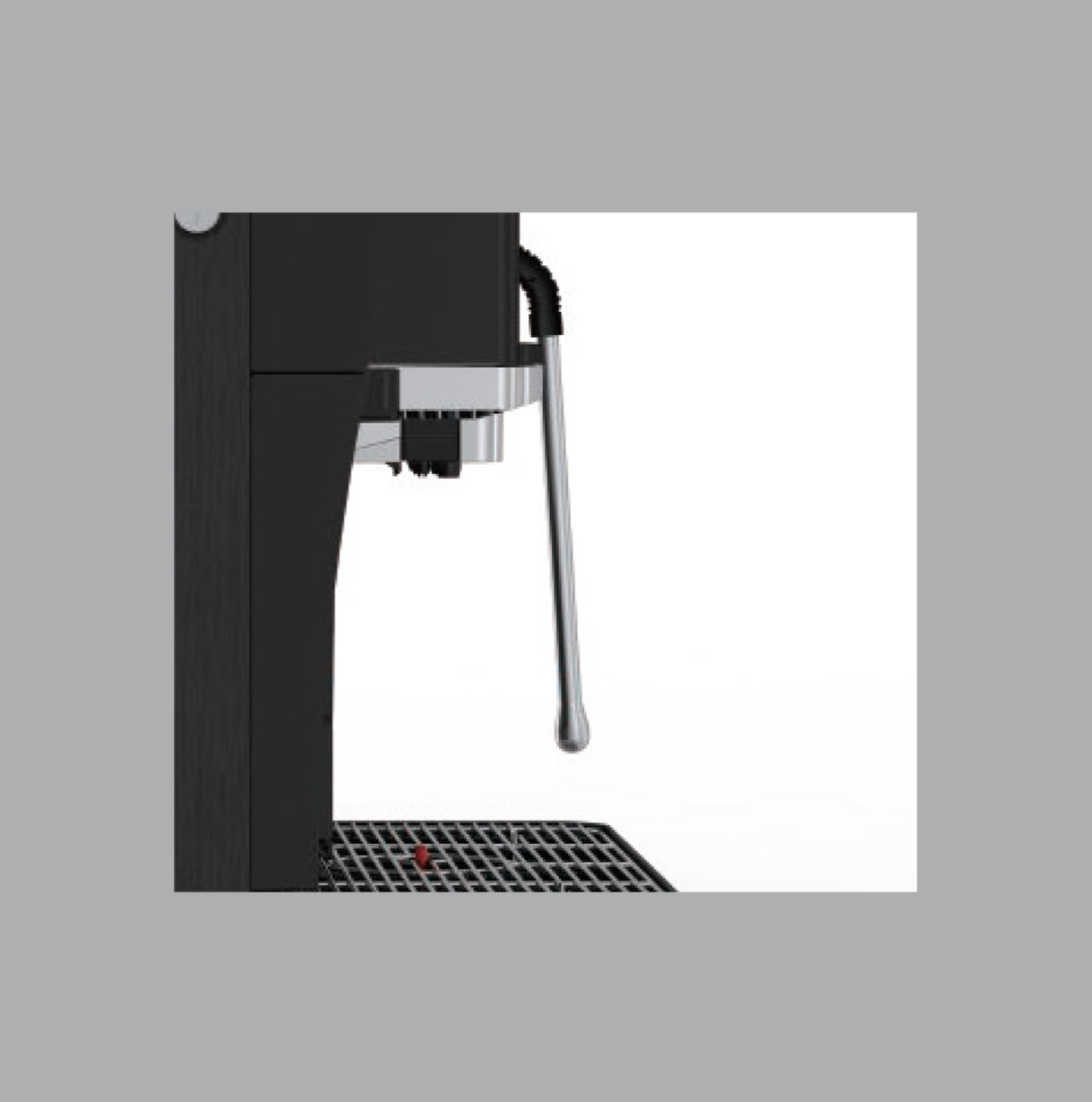

Steam wand
for hands on micro foam

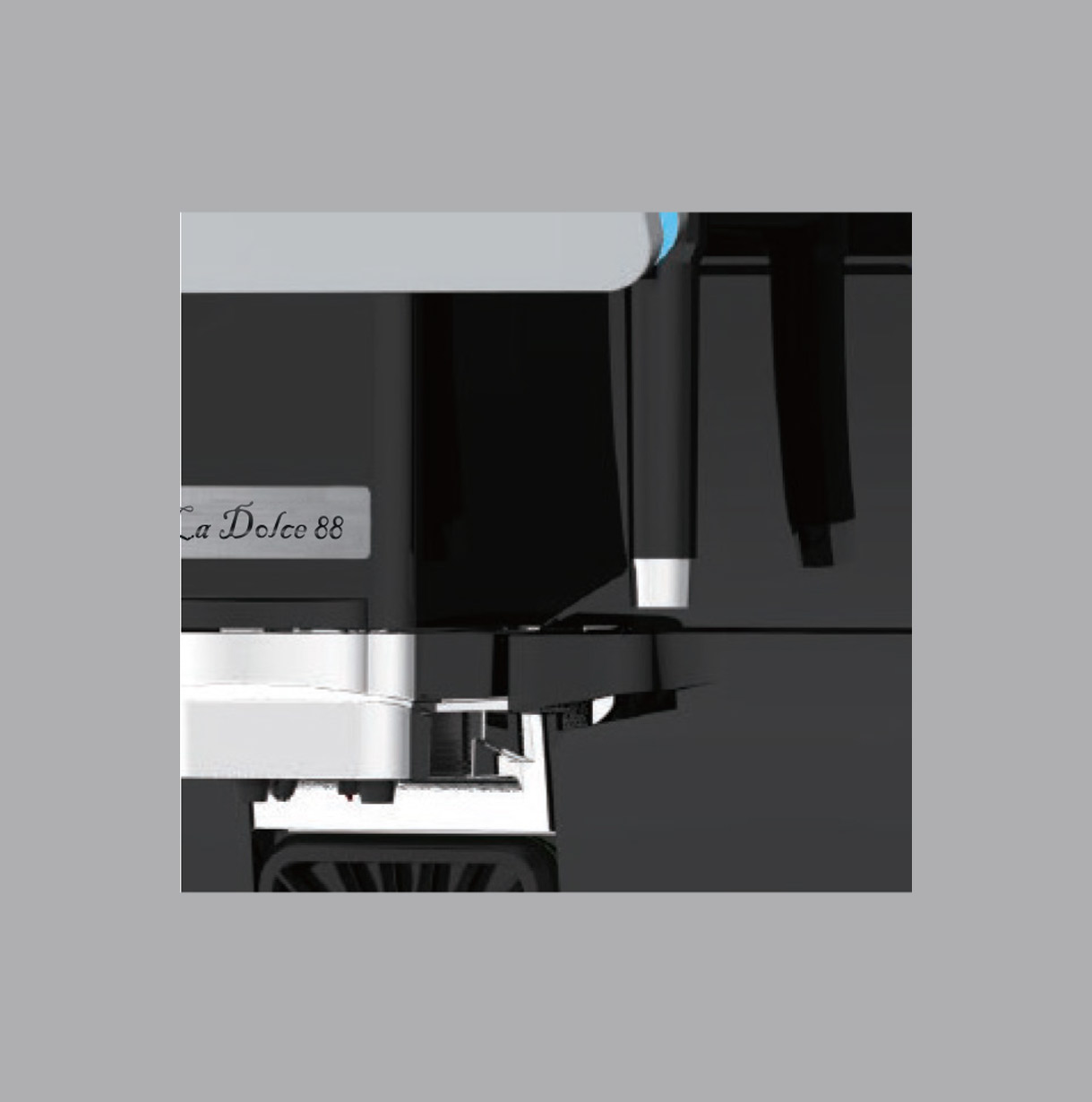

Small cup deck
to keep crema intact
Multiple Cleaning Options
Start-up Cleaning
The machine will automatically make full machine cleaning every time it is powered on.
Timed Cleaning
schedule a time and the machine will conduct an auto full-machine cleaning.
Milk System Cleaning
schedule a time and the milk system is able to have auto cleaning, removing the milk dregs and residue.
Partial Cleaning
choose to separately clean key modules.
Deep cleaning
use exclusive cleaners to deeply clean coffee and milk residue.
Manual Cleaning
Manually remove the module or parts and deeply clean by hand,
A Wider Menu
A Variety of Drinks
Built in powder canister(s) work in concert with the ES brewing system JL32 is able to cater with various beverage options, by the perfect mix and fresh-milk system to unlock a broader menu-chocolate drinks, of fresh ground coffee, fresh milk and luscious milk foam, and options flavored lattes and other specialty mixes on top of classic espresso of instant ingredients. There are 2 instant canisters if you choose the beverages
model JL32A or JL32B.
Unlimited Recipes
All drink variables (coffee/powder dose, milk texture, volumes, timing) are fully editable and savable for virtually unlimited custom recipes; optional SaaS enables remote updates at scale.

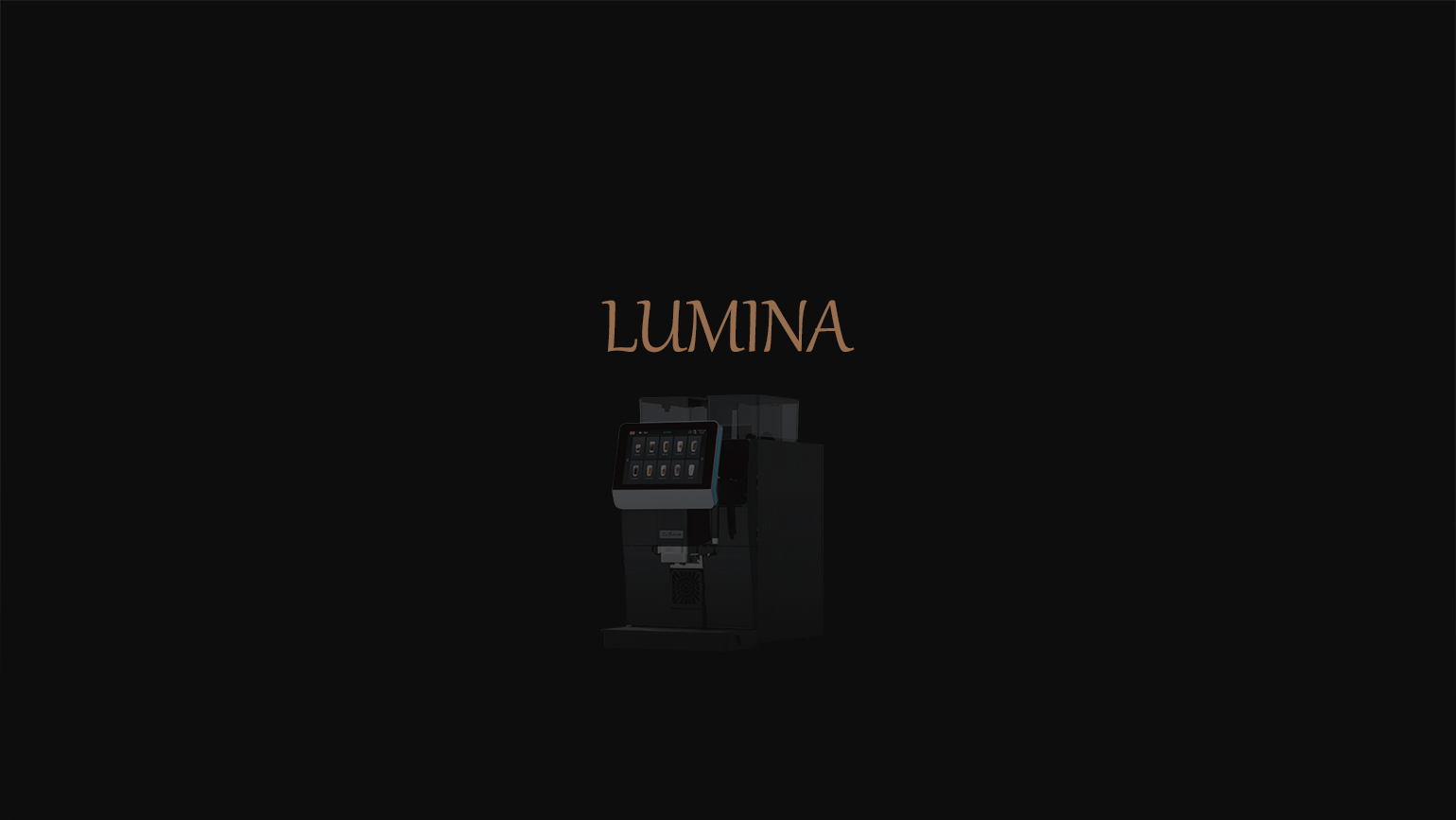

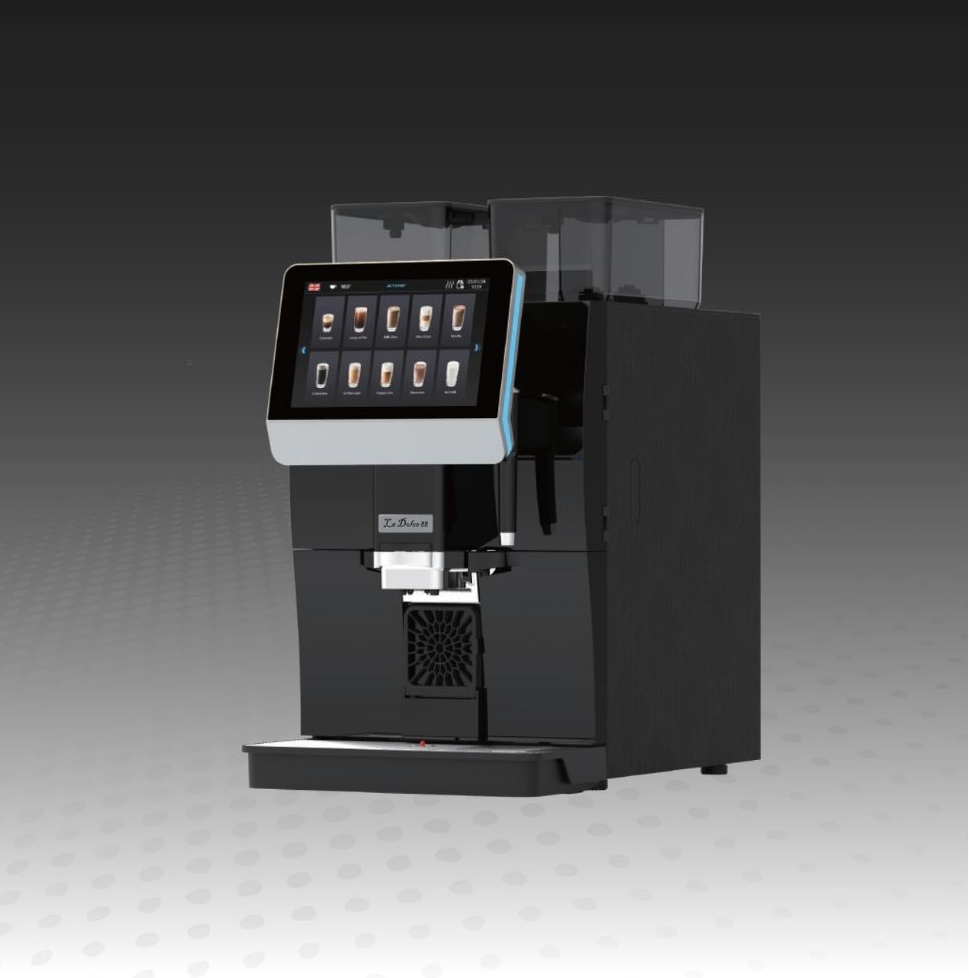

LUMINA Espresso machine
Jetinno SGH64 Grinding System
- 64mm special steel flat grinding burrs.
- Dissipate heat quickly, preventing coffee grounds from being reheated.
- 11-level adjustable grinding coarseness.
- 500kg coffee bean burr lifespan.
Jetinno High-Pressure Espresso Brewing System
- Pre-infusion extraction technology.
- Different locations for coffee bean loading and brewing.
- Optional 14g/20g brewing chamber capacity.
- Easy one-step disassembly for brewing
Hydraulic System
- Dual instant boilers provide 92°C hot water.
- Italian ARS high-pressure electromagnetic pump, provides strong and stable extraction pressure.
- Solenoid valves with a long lifespan.
- Independent modular design.

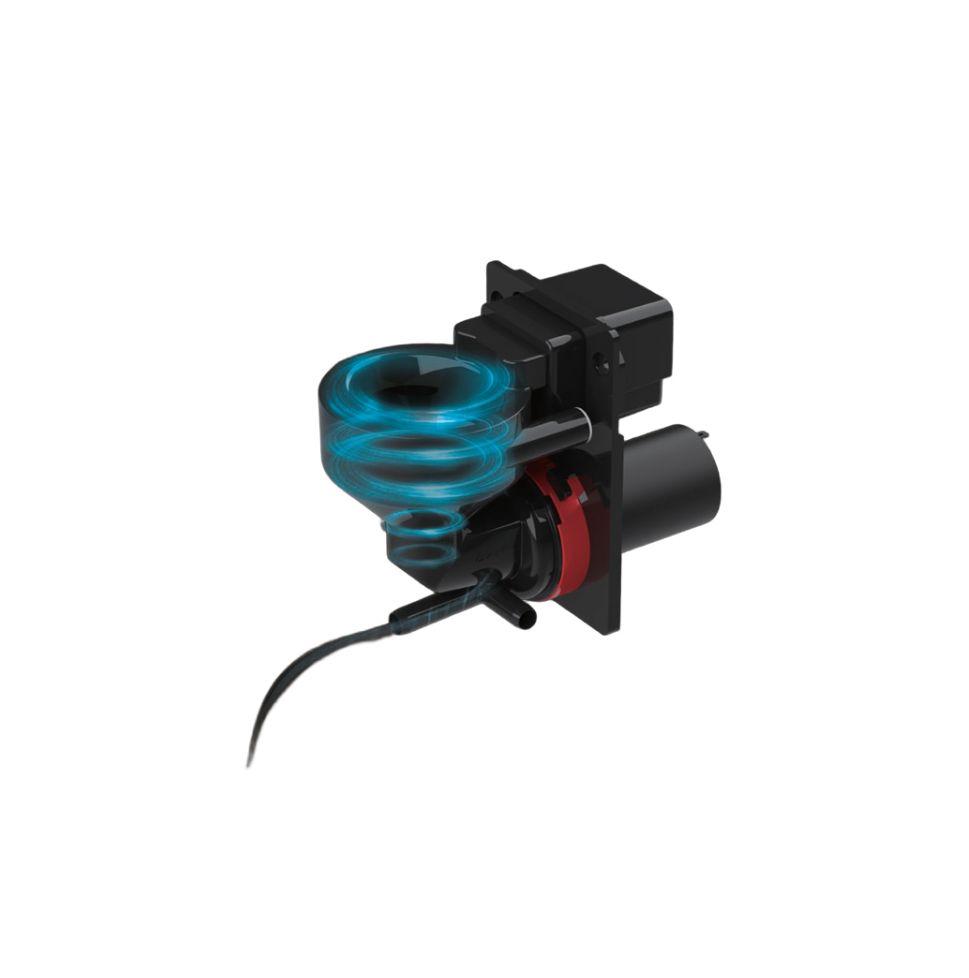

High speed stirring system
- Patented tech innovated by Jetinno.
- Detachable stirring chamber, easy for cleaning and maintenance.
- Up to 20000rpm stirring speed, rapid sufficient dissolution.
- Adjustable stirring speed for different recipes. (milk foam requires high
- speed, instant coffee and tea drinks require low speed).

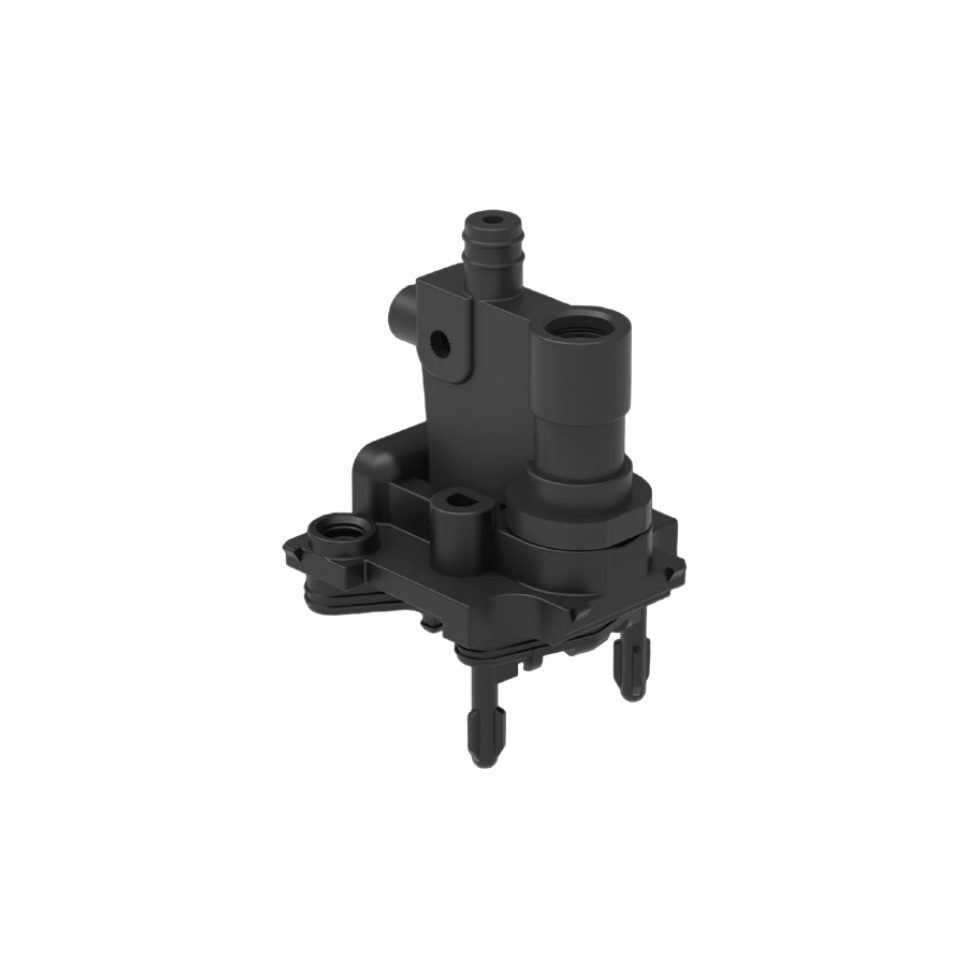

Hot Milk Frothing System
- Produces hot milk/foamed milk with a tem perature of 60°C or above.
- Independently adjusts the froth volume in the beverage.
- Timed automatic cleaning of the milk path.
- Snap-on design allows for quick disassembly.

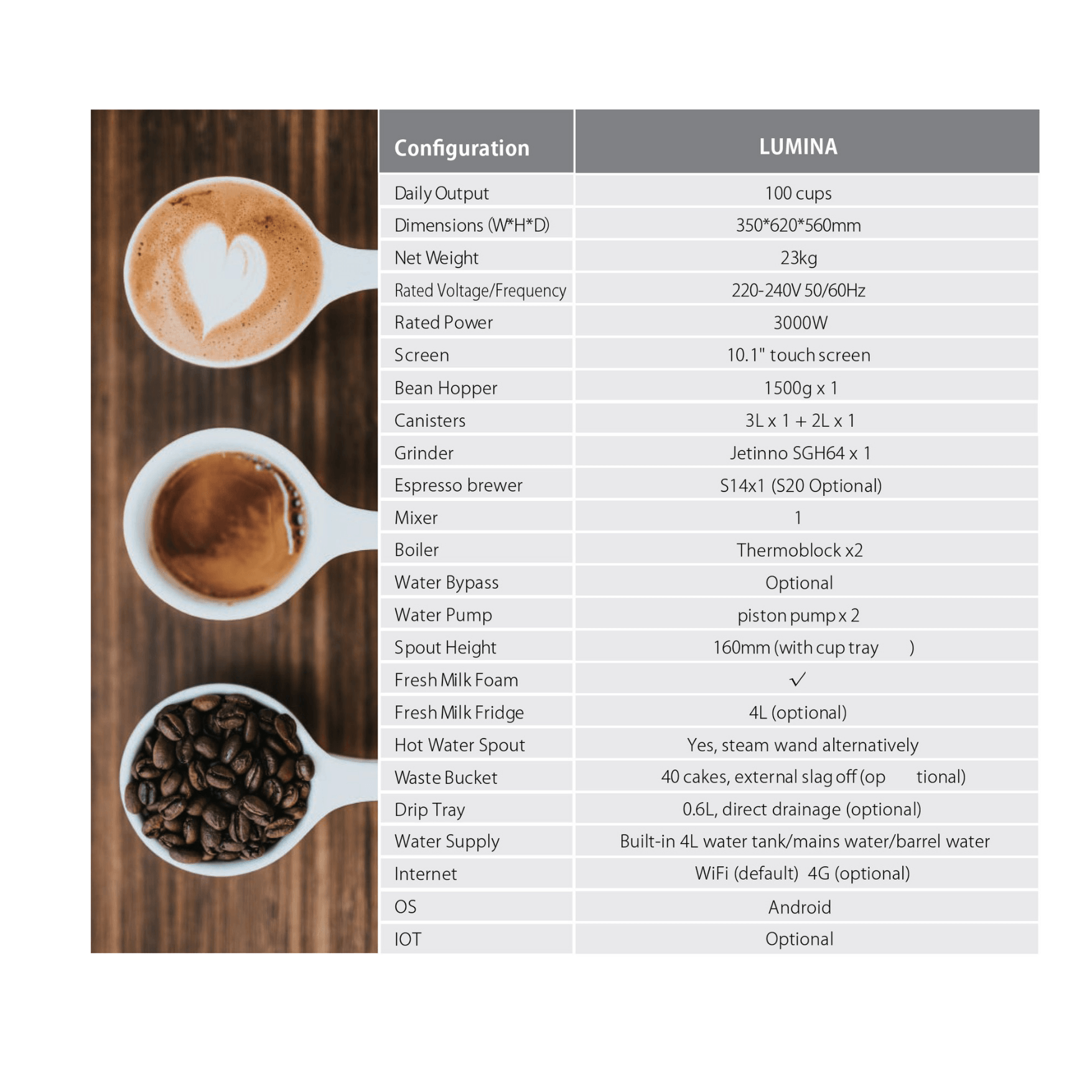

| Configurations | Parameter specification |
| Displaying screen | 10.1″ touch screen |
| Bean hopper | 1500g x 1 |
| Canisters | 5L x 1 |
| Grinder | Jetinno SGH64 x 1 |
| Espresso brewer | S14x1/P20 |
| Mixer | 1 |
| Boiler | Thermoblock x 2 |
| Hot Water Spout | Yes, steam wand alternatively |
| Waste bin | 40 cakes, external slag off (optional) |
| Drip tray | 0.6L, external drainage(optional) |
| Spout height | 160mm (with cup tray) |
| Water supply | Built-in 4L water tank/mains water/barrel water |
| Power Supply | 220-240V 50/60Hz |
| Rated Power | 3000W |
| Dimensions (W*H*D) | 350*620*560mm |
| Net weight | 23kg |
