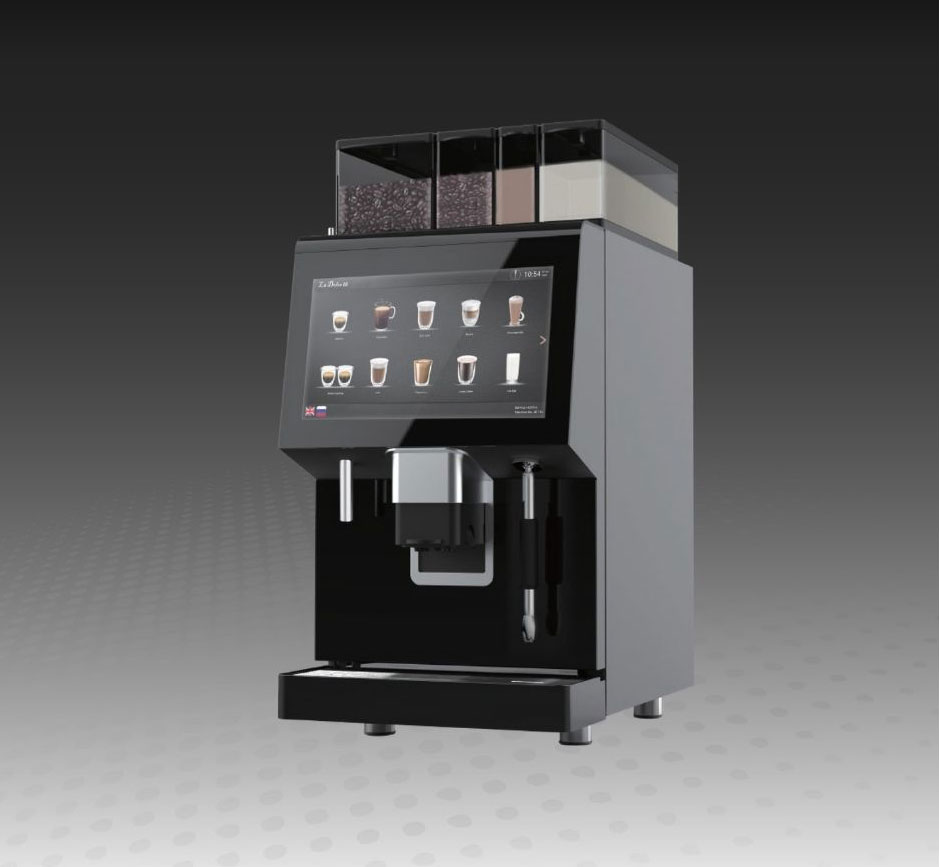

FULLY AUTOMATIC COFFEE MACHINE – 250 CUPS

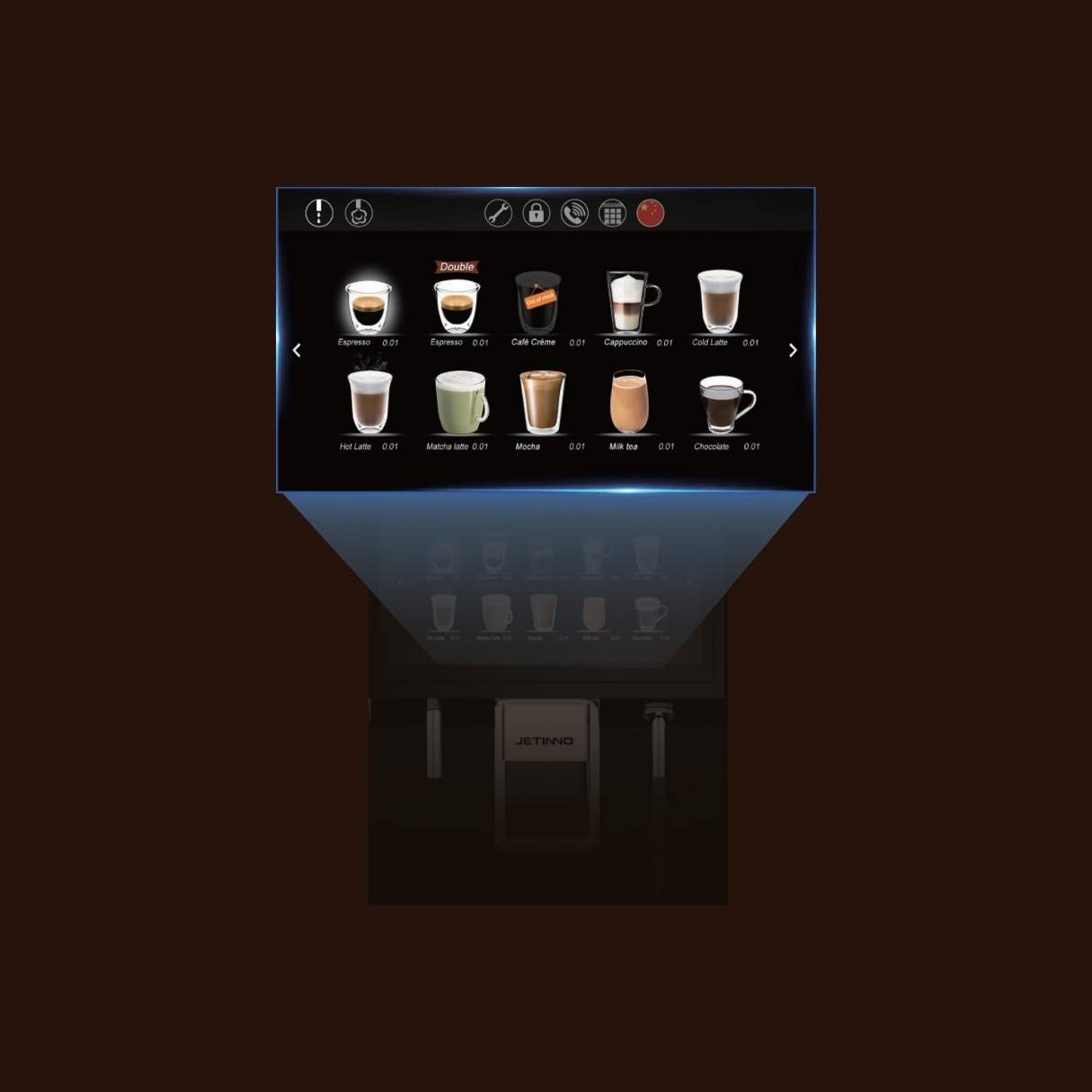

- 14″ Touch Display x1
- 20g ES Brewer + 14g ES Brewer
- Swiss Ditting EMH64 Grinder x2
- Bean Hopper x2
- Instant Canister x2
- Automatic Rinsing and Cleaning Function
- Compatible with MDB Protocol Payment Devices
- Wifi Connection
- Telemetry
- support barrelled water
Hot&Cold Fresh Milk
Dual Brewing System
Your Fresh Milk Coffee Master
Professional Dual Brew
Double-equipped
Built with 2 grinders and 2 brewers, optional with 14g/20g esspreso brewers and filter brewer, able to serve with more coffee recipes.
Smart Fresh Milk Frother
Smart frothing control to make dense and silky hot/cold milk foam.
Modular Design
Diversity of configurations are available bychoosing different brewing modules and instant modules
Details Make Professional

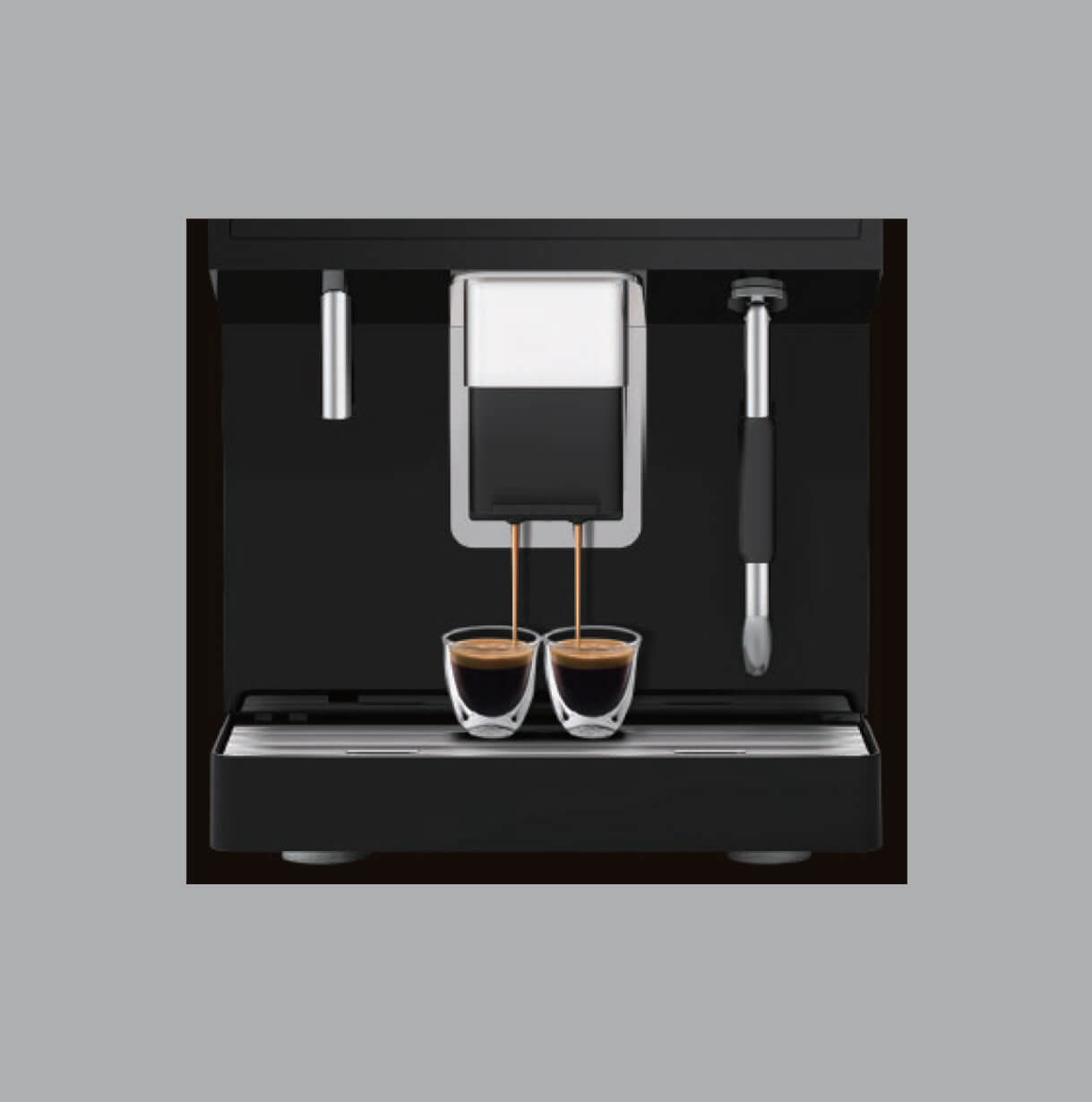

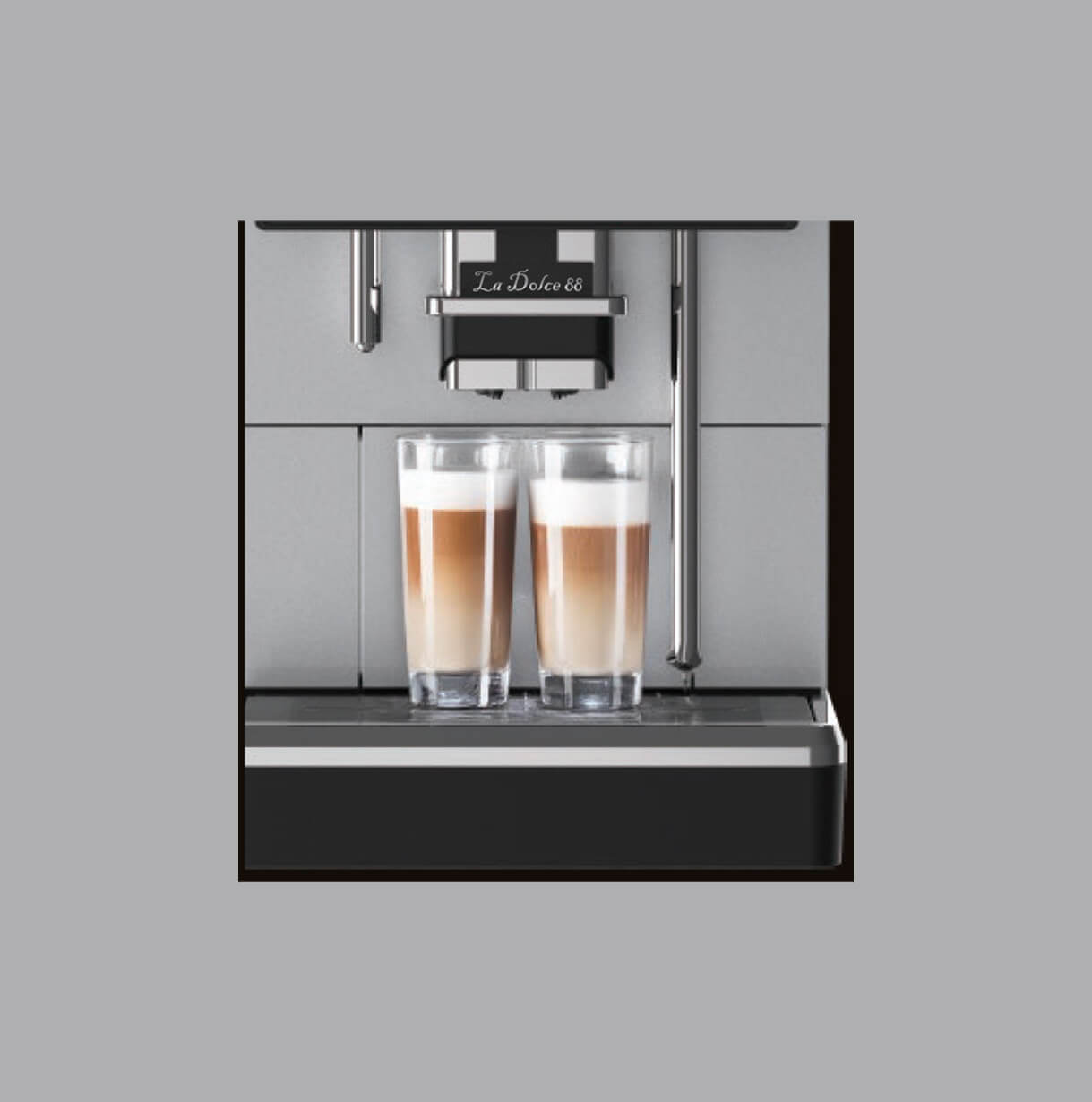

One Click Two Cups
Serve with 2 cups of coffee at the same time.

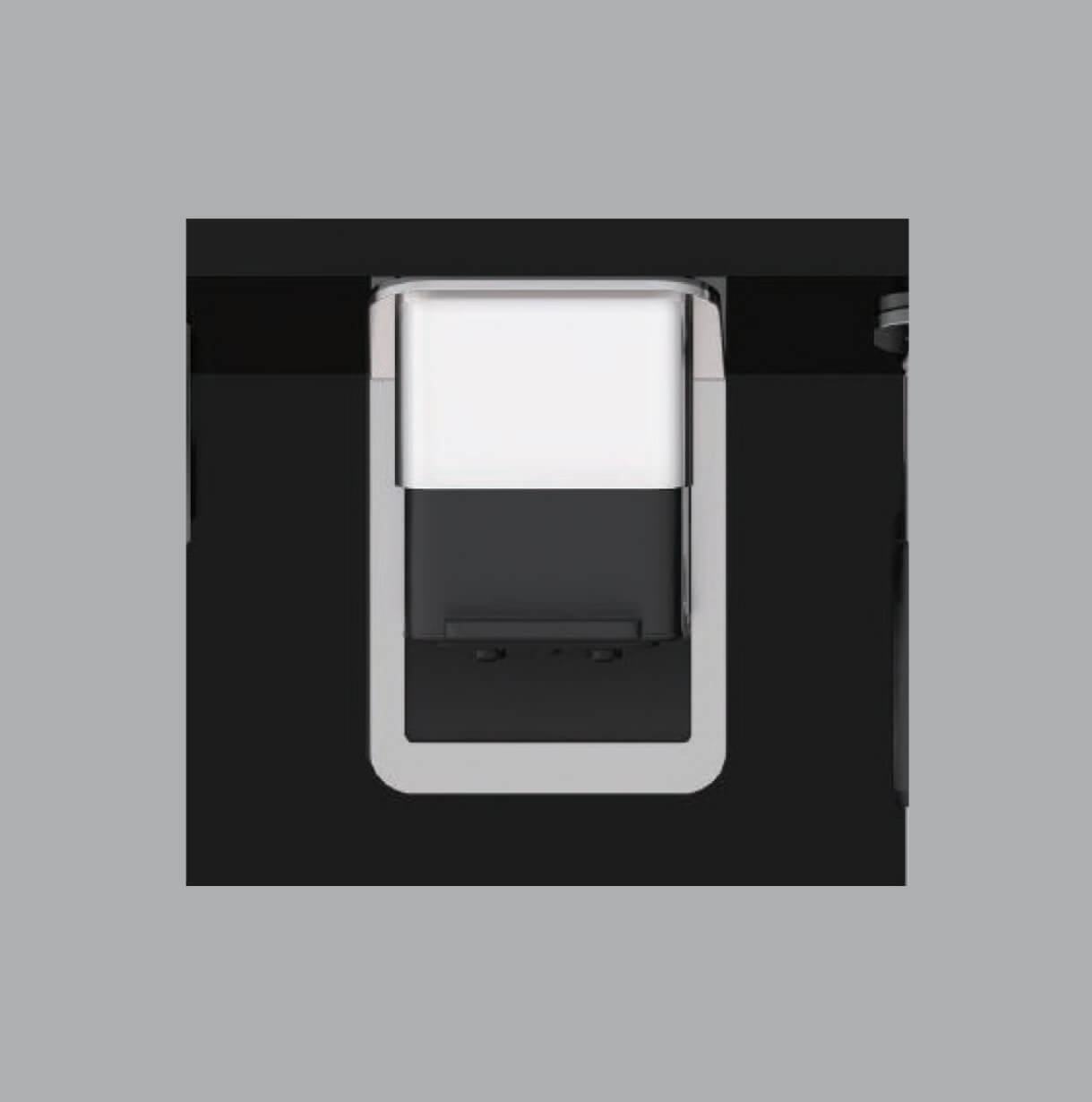

Adjustable Spout
The height range is 80-180mm, adjustable to fit with different cups.

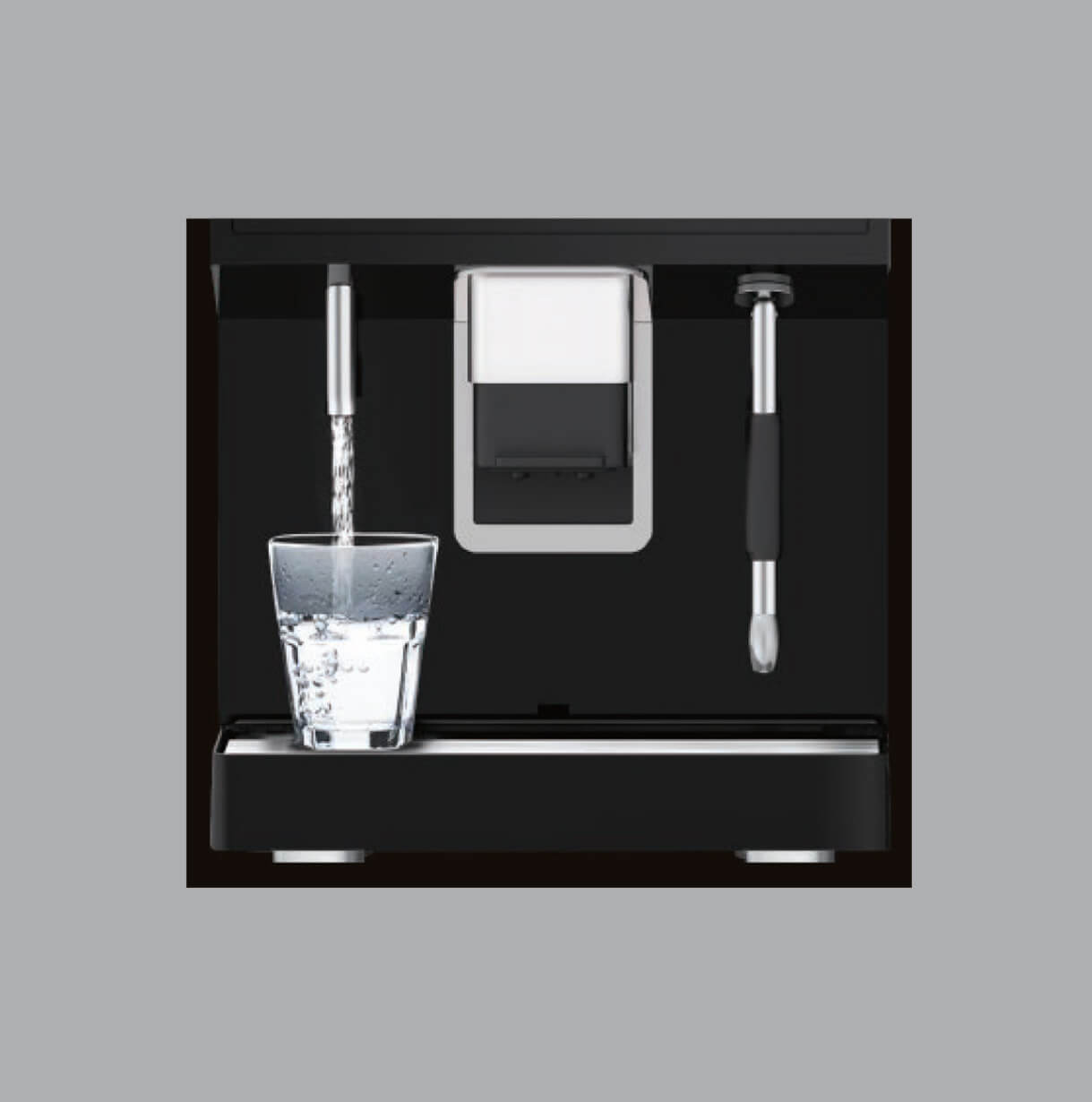

Hot Water Spout & Steam Wand
Care more for cup warming and manual coffee making.

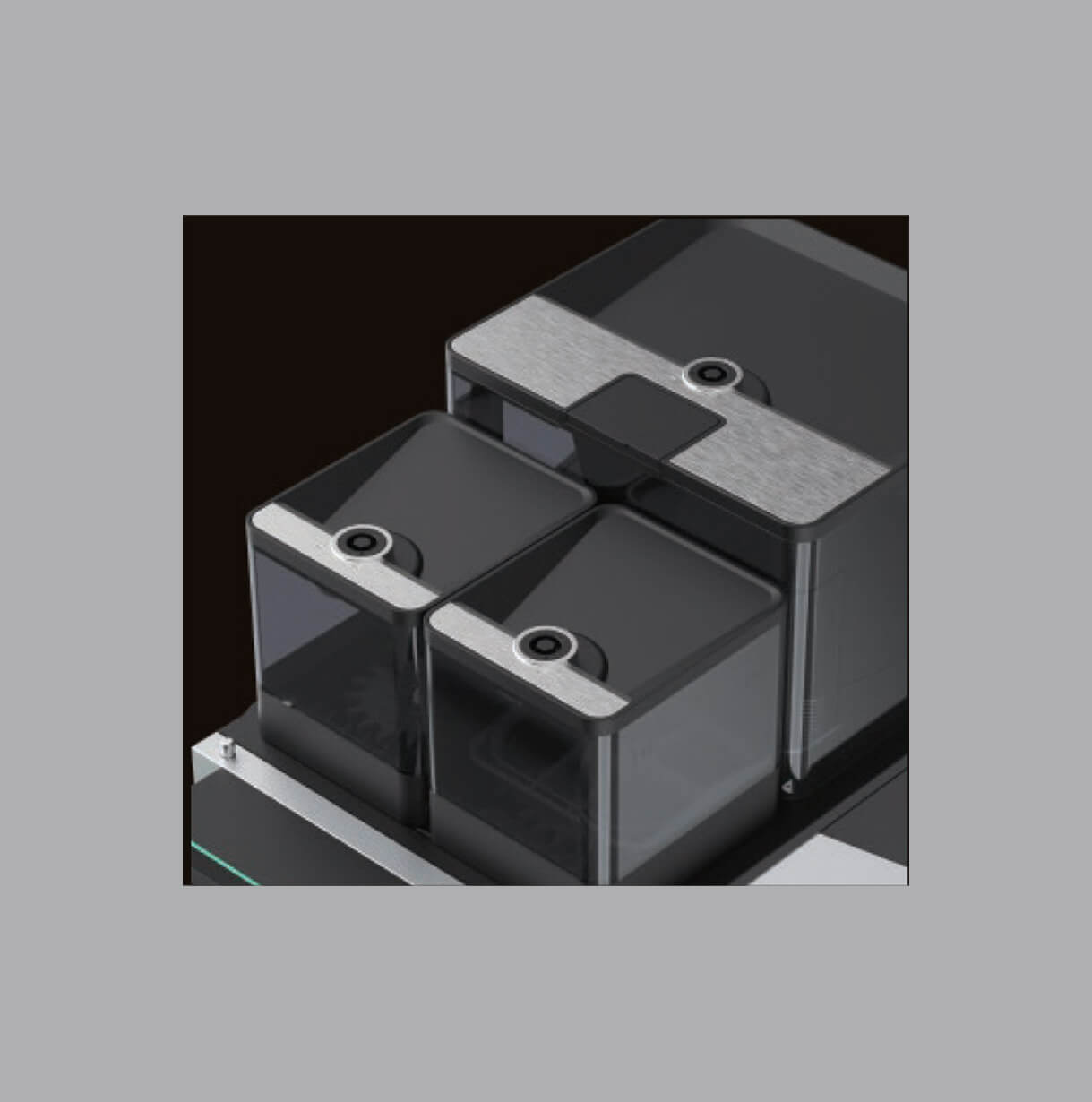

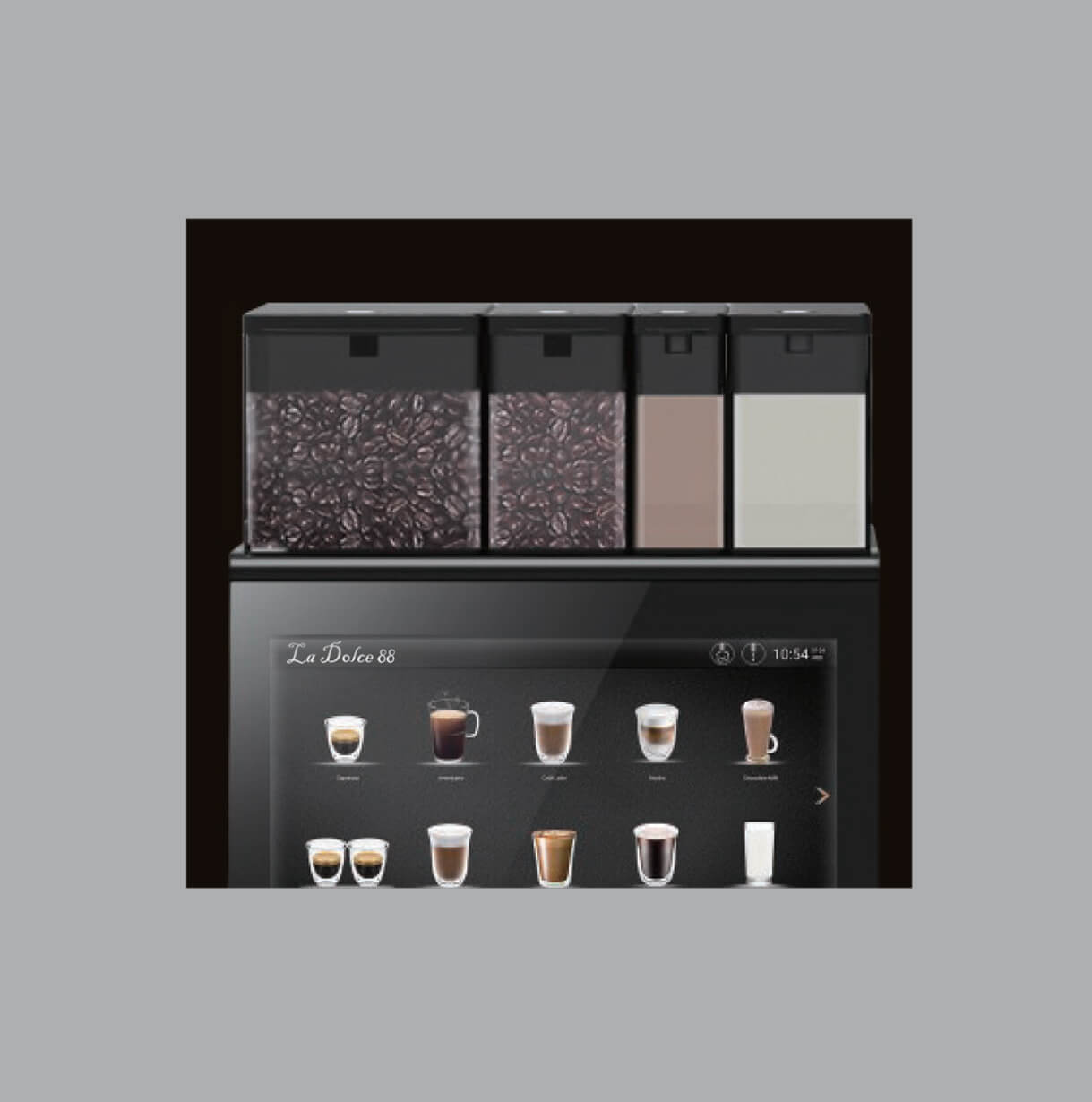

Lockable Hoppers & Canisters
See the bean and secure the ingredients.
A Variety of Coffee and Drinks
Dual grinding and brewing system, together with different brewers options, JL65 offers more coffee/tea choices. Added with instant and syrup, It is able to make quite a variety of drinks.
Fresh Milk System
With fresh milk system, JL65 can easily produce delicate and smooth cold/hot milk foam. The humidity and temperature of the milk foam can be adjusted to the need of fresh milk beverage.
| Configuration | VOGUE |
| Bean Hopper | 1×1.8kg + 1×1.0kg |
| Instant container | 1 * 3.5L + 1 * 2.3L |
| Grinder | 2xDitting EMH64 |
| Espresso brewer | P14x2/P20 |
| Mixer | 1 |
| Hot water boiler | 1x700mL,2700W |
| Steam boiler | 1x700mL,3000W |
| Water Pump | Gear Pump |
| Spout height | 80-180 mm |
| Cup Detector | √ |
| Separate hot water outlet | √ |
| Separate Hot Water | √ |
| Waste bin | √ |
| Drip tray | √ |
| Slag falling | Optional |
| Waste water drainage | Optional |
| Cup Tray | Optional |
| Cup Warmer | Optional |
| Base cabinet | Optional |
| Fresh Milk System | Cold&Hot Fresh milk and milk foam |

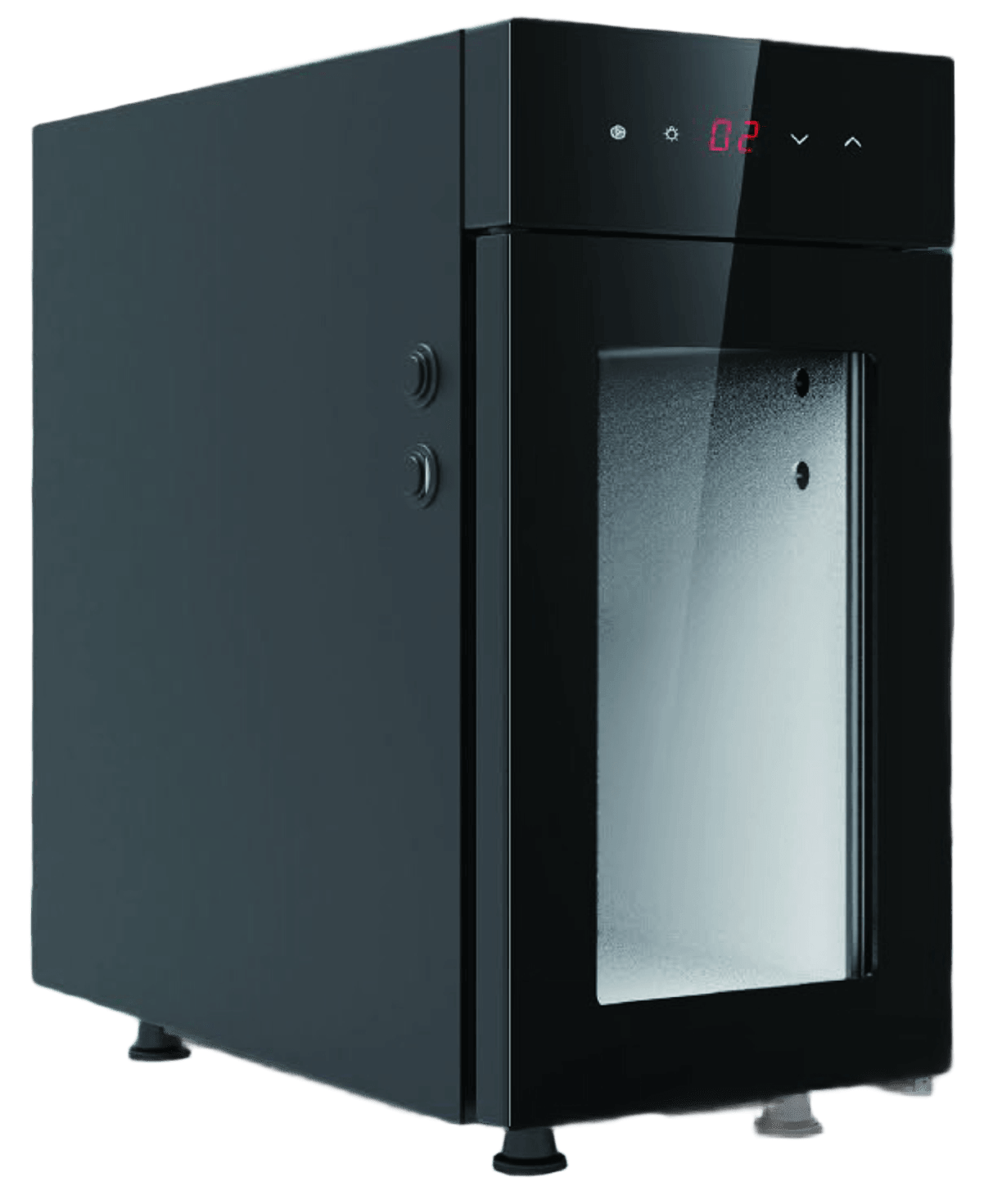

| Fresh Milk Fridge | Optional, 4.5L |
| Syrup Module | Optional, maximum 6 bottles |
| Water supply | Tap water(default), barrelled water(optional) |
| Internet connection | WiFi (default) 4G (optional) |
| Payment system | Standard-wechat or alipay/Optional-scanner pay or other MDB payment devices |
| OS | Android |
| SaaS Platform | Optional |
Parameter specification
| Configurations | Parameter specification |
| Displaying screen | 14 touch screen |
| Bean hopper | 1 * 1.8kg + 1 * 1kg |
| Canisters | 1 * 3.5L + 1 * 2.3L |
| Grinder | 2 x Ditting EMH64 |
| Espresso brewer | P * 14 * 2 / P * 20 |
| Mixer | 1 |
| Boiler | 1 x 700mL,2700W |
| Hot Water Spout | 1 x 700mL,3000W |
| Waste bin | 80 cakes, or external slag off (optional) |
| Drip tray | 1L, or waste water drainage(optional) |
| Spout height | 80-180mm |
| Water supply | Tap water(default), barrelled water(optional) |
| Power Supply | 220-240V 50/60Hz |
| Rated Power | 3100W |
| Dimensions (W*H*D) | 365-730-535mm |
| Net weight | 66kg |

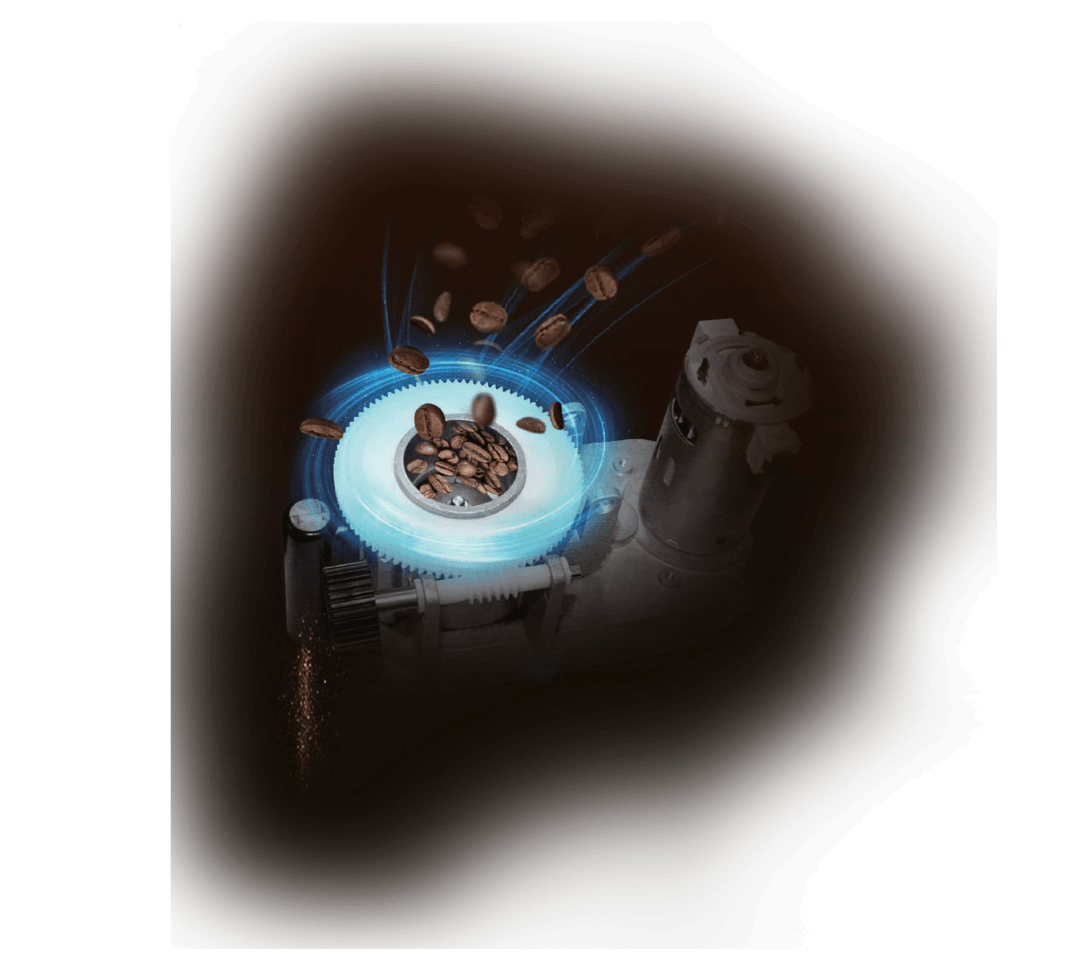

LaDolce 88 grinder
Exceptional Quality Derives from Profession
Start-up Cleaning
The machine will automatically make
full machine cleaning every time it is powered on.
Timed Cleaning
schedule a time and the machine will conduct an auto full-machine cleaning.
Milk System Cleaning
schedule a time and the milk system is able to have auto cleaning, removing the milk dregs and residue,
Partial Cleaning
choose to separately clean key modules.
Deep Cleaning
use exclusive cleaners to deeply clean coffee and milk residue.
Manual Cleaning
Manually remove the module or parts and deeply clean by hand.
Details Make Professional
One Click, two cups
Serve with 2 cups of coffee at the same time.
Adjustable Spout
The height range is 80-180mm, adjustable to fit with different cups.
Hot Water Spout & Steam Wand
Care more for cup warming and coffee art maker.
Lockable Hoppers & Canisters
See the bean and enjoy the coffee ground and brewed.

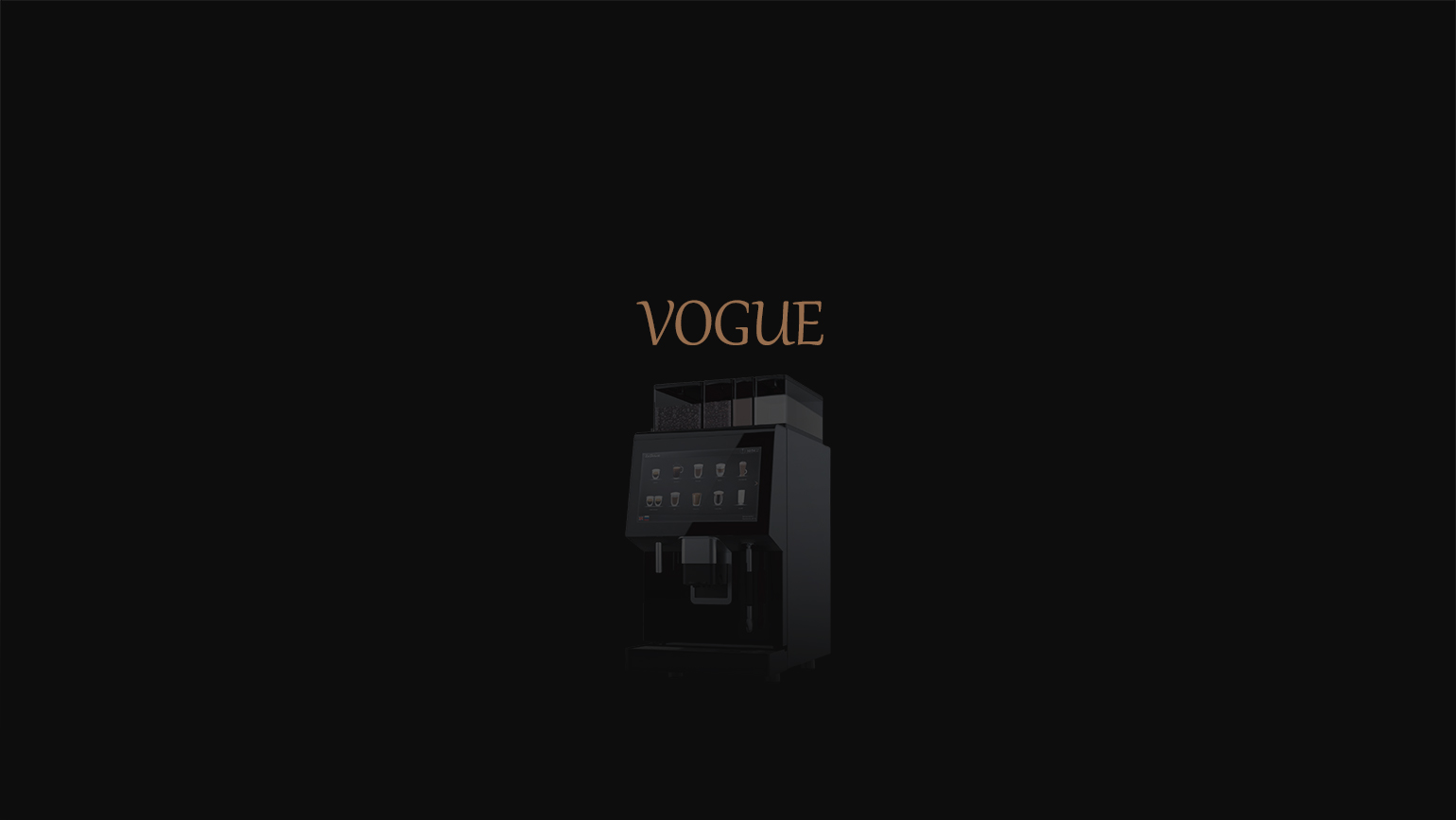

Vogue Espresso machine

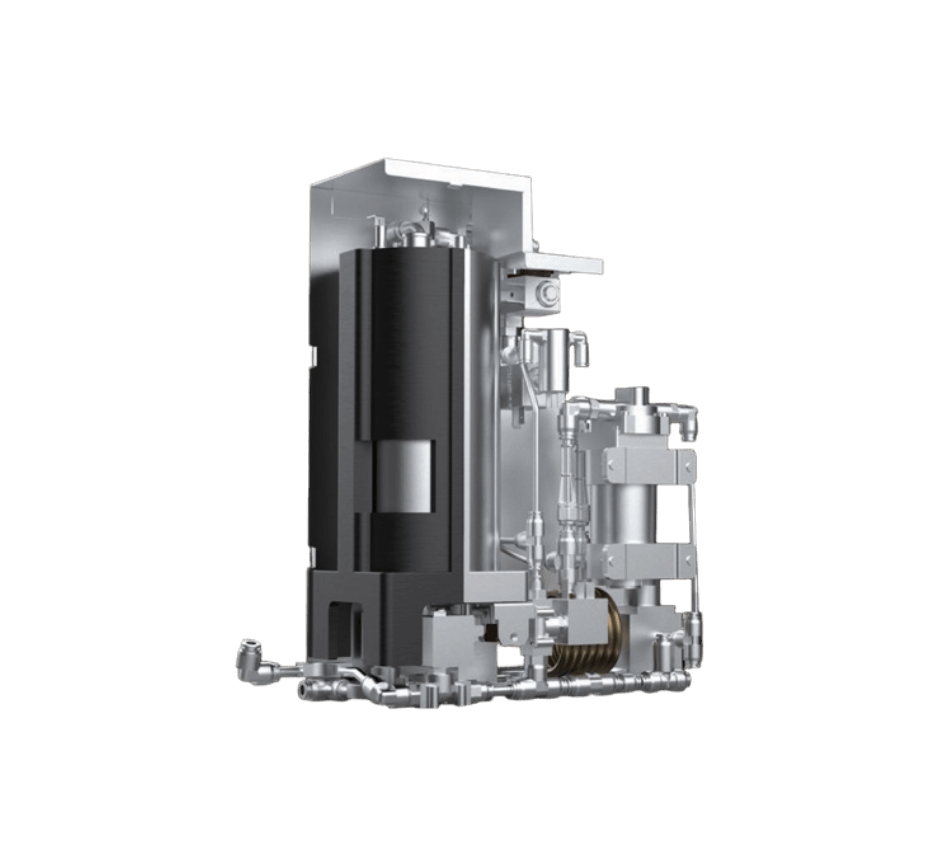

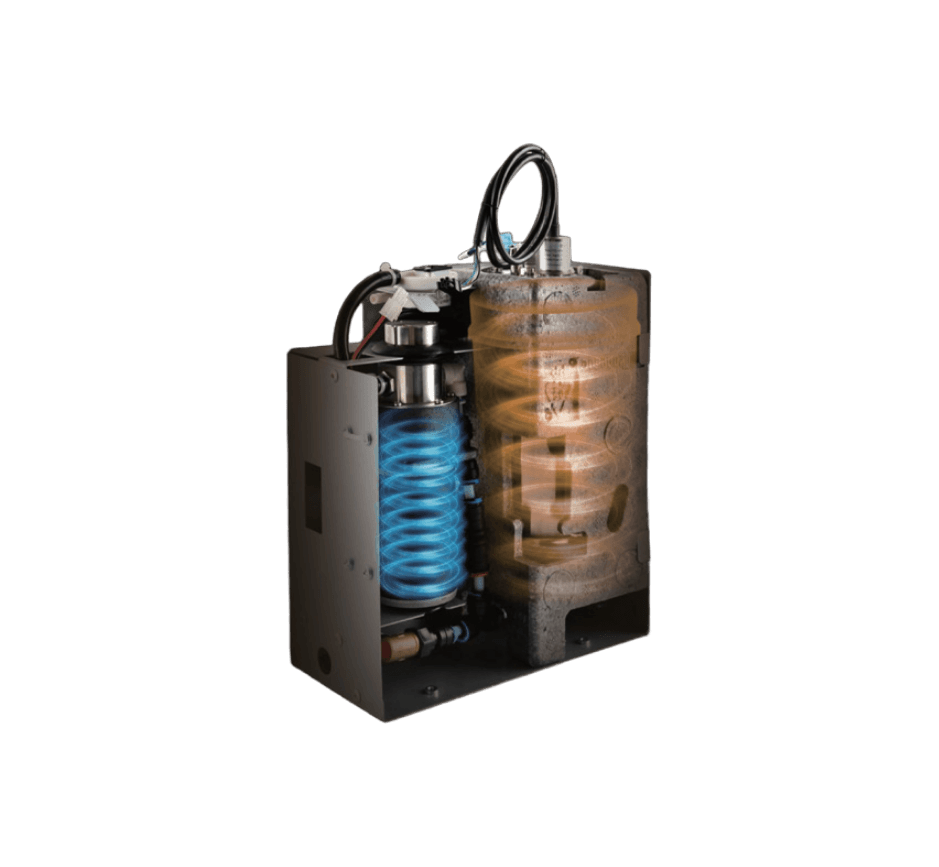

Jetinno Patented Hydraulic System
- 2700W heating power, continuous and stable water temperature guaranteed.
- Sweden Backerths 700ml stainless high-pressure boiler, max 25bar tolerance.
- USA EMERSON professional STB temperature control protective switch.
- Japan OMRON temperature/pressure sensor, real-time monitoring.
- Italian ULKA high-pressure gear pump, powerful and stable extraction pressure.
- Other valve joints spare parts, flow meter are all Italy and German made.

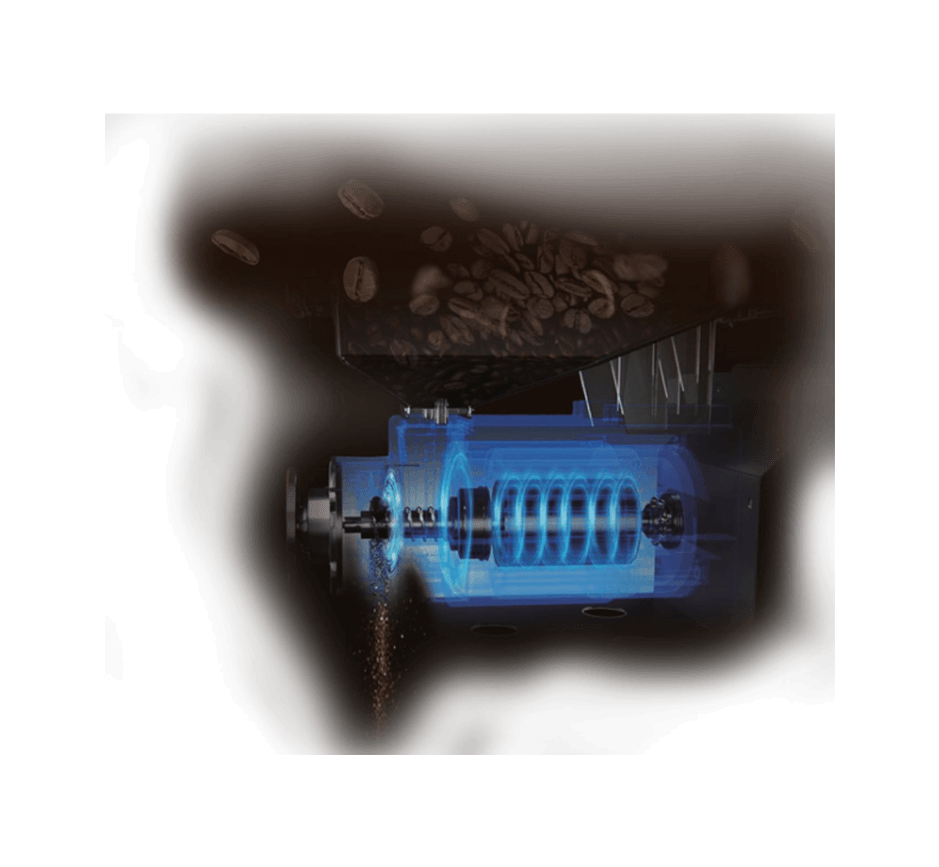

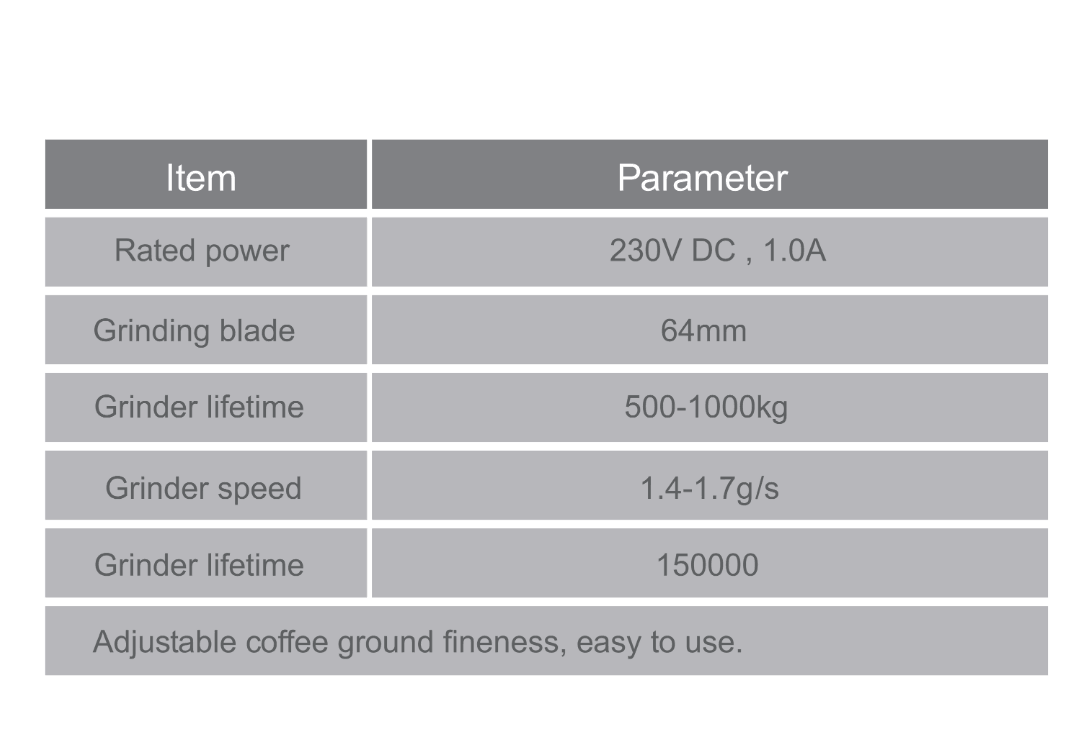

Ditting EMH64 Grinder
- 64mm flat bur, made of stainless steel.
- Low grinding heat, no interference to coffee flavor.
- Multiple adjusting grades of grinding fineness.
- 125,000 times lifespan, long service life.

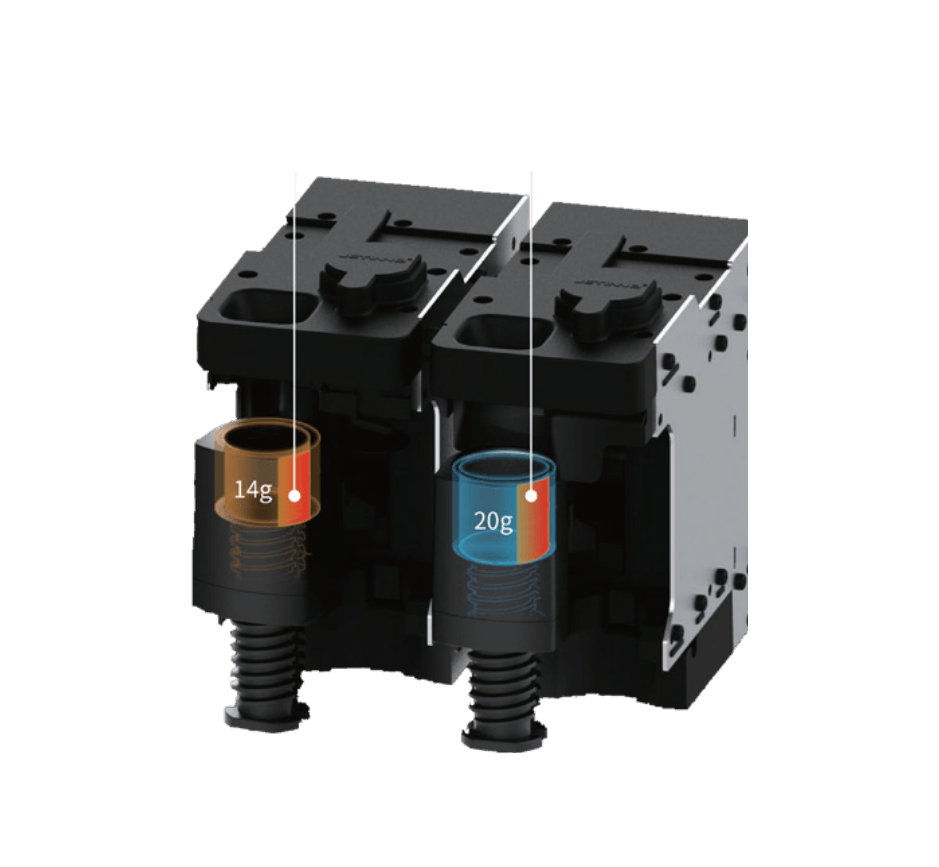

Professional coffee brewing system
- Removable brewer module design, easy for cleaning.
- Jetinno PTC international patent, European time-honored brand applies the same type.
- Pre-infusion function to have saturated extraction.
- PTC heaters in brewing chambers, provide constant heating to solve low-temp of first cup.
- Built with 14g and 20g two brewing chambers, for different recipes.
- Detachable brewing chamber design, easy for deep-cleaning.
- Auto decompression function to discharge residual coffee liquid.

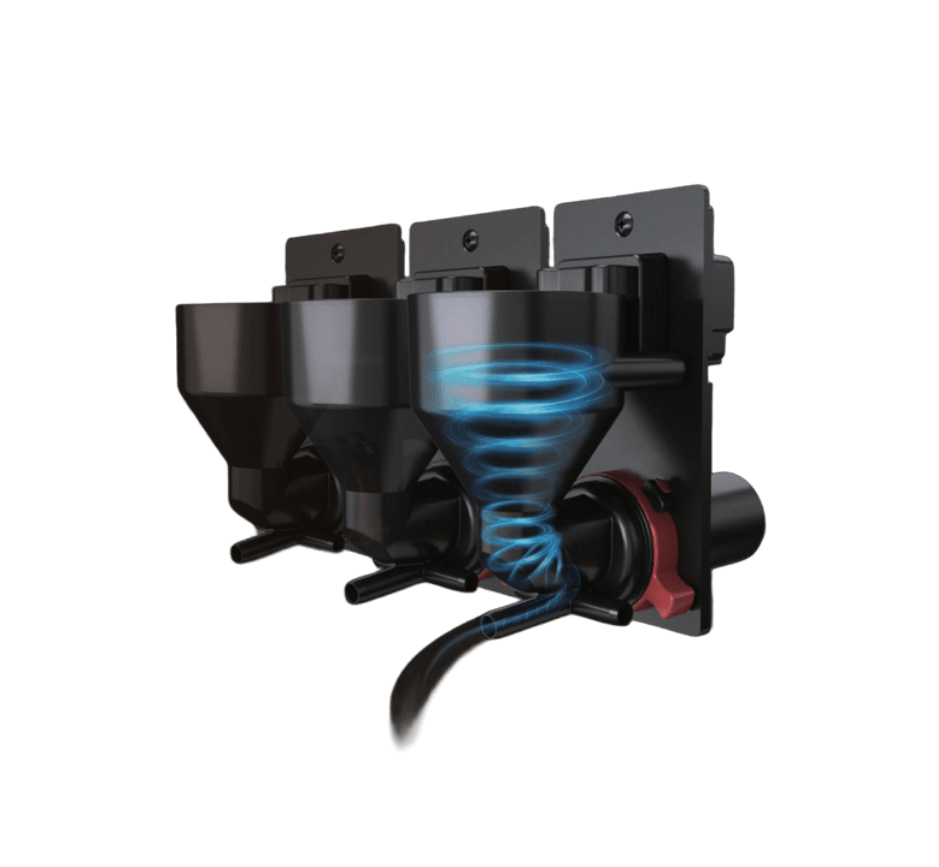

High speed stirring system
- Patented tech innovated by Jetinno.
- Detachable stirring chamber, easy for cleaning and maintenance.
Up to 20000rpm stirring speed, rapid sufficient dissolution. - Adjustable stirring speed for different recipes.
- (milk foam requires high speed, instant coffee and tea drinks require low speed).
Jetinno Smart Milk Foam System
- Provide hot/cold Milk and hot/cold milk foam.
- Fluid-o-tech milk pump, makes dense and silky foam.
- Smart detection, milk tank empty alert.
- humidity and temperature settings for each drink.
- milk system auto cleaning.
- separate and detachable fresh milk module..
Cleaning products
milk system cleaner for coffee machine
Usage: use 1 pill with 500m water
Details: 4g/pill, 120pills/bottle
Tower
Use: used for coffee machine cleaning and maintenance
Details: general use
Coffee Machine Boiler Cleaner
Use: used for coffee machine boiler cleaning
Ratio: 200g powder with 3.9L water
Details: 1kg/bottle, 6 bottles/case
Cleaning Brush
Use: used for coffee machine cleaning
and maintenance
Details: general use
Ul customization
| Name | Position | Width | Height | Format |
|---|---|---|---|---|
| Brand LOGO | A | 65.5mm | 60mm | Al or cdr |
| UI LOGO | B | 105PX | 105PX | Al or cdr |
| UI drink picture | C | 478PX | 500PX | PNG |
| Video ads | D | 1920PX | 1080PX | PNG |
Deep customization
| Name | Item |
| Ports | Open underlying control serial port protocol, support customer self-developed APP.
Open network interface (TCP/IP), support customer self-developed server. Open RESTful interface, support customer online store and data system. |
| OS | APP application layer customizable development (Android). |
